7.5HP LEESON 1775RPM 213TC TENV 3PH MOTOR 810157.00

Catalog Number:  810157.00
Model Number:  213THTS8070BR
Description:  7.5HP,1775RPM,213TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  220 lbs.

This LEESON Motor Can ONLY Ship Ground Truck Freight
For expedited needs please contact our sales team

FEATURES:

  • Cast Iron Frame
  • 1-3/8" Keyed Output shaft
  • Class H inverter-rated IRIS insulation system
  • Constant torque operation from 0 to base RPM rating on Vector Drives
  • Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes
  • Designed for optimum performance with IGBT inverters - not for across-the-line starting
  • C-face with rigid base through 100HP
  • Normally closed thermostats (one per phase)
  • Continuous duty at 40*C ambient
  • 1.0 Service Factor (Class "B" rise on TEBC motors)
  • Premium quality, cast iron frame and endbells
  • 284T and larger are blower cooled with a separately powered three-phase blower motor to provide added cooling at low speeds
  • Ball bearings (Roller bearings available 360-frame and larger)
  • Field convertible to F2 mounting
  • Encoder provisions included on opposite drive end
  • Three year warranty
  • Meets NEMA MG1, parts 30 & 31

APPLICATIONS: Designed for inverter or vector applications where up to 2000:1 constant torque speed range is required. Typical uses include, material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps, compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

Volts 230 Volts 460 Volts
F.L. Amps 21 F.L. Amps 10.5 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 7 1/2 Duty CONTINUOUS TYPE TN
KW 5.6 Model # 213THTS8070BR
Frame 213TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design A Code L
Insul Class H Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 75
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 207
CC Number EXEMPT CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range 2.0 X BASE SPEED
Motor Wt. 220 LB Enclosure TENV Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

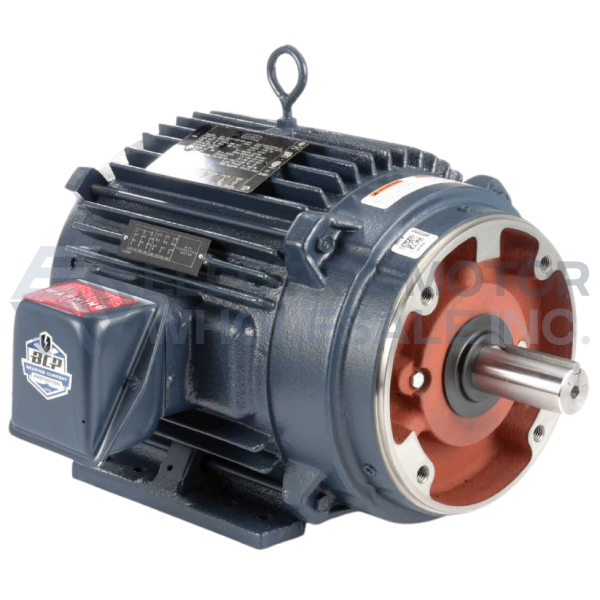

7.5HP LEESON 1775RPM 213TC TENV 3PH MOTOR 810157.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 810157.00
Stock # 810157
Price: $1,484.00
Compare At: $3,746.00
