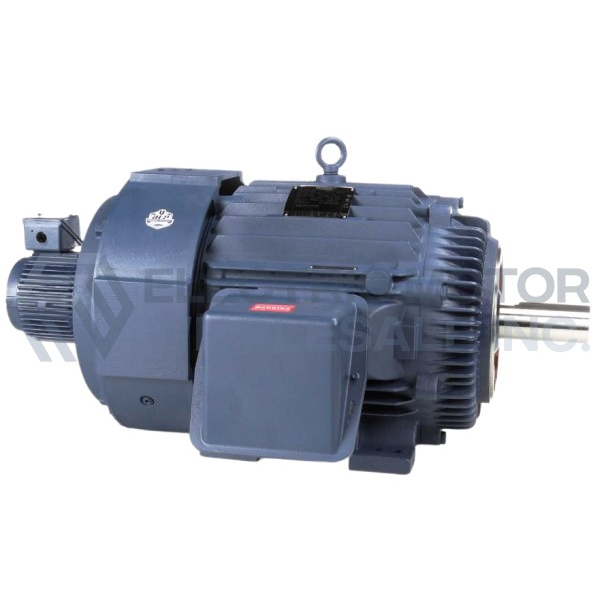

75HP LEESON 1185RPM 405TC TEBC 3PH Inverter Duty Motor 810099.00

75HP LEESON 1185RPM 405TC TEBC 3PH Inverter Duty Motor 810099.00


Part Number:

810099.00

Model/Spec Number:

405THFS8386

Manufacturer:

Leeson Obsolete
810099.00 LEESON 75HP Inverter Duty Electric Motor is designed for inverter or vector applications where up to 2000:1 constant torque speed range is required.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

1,400 lbs

Dimensions:

48 x 58 x 31 inches

HS Code:

8501.52.0000

UPC:

691720211281

Technical Details

Brand:

Leeson

Application:

Vector Duty

Output HP:

75

Output KW:

56

Output RPM:

1185

Frame Size NEMA:

405TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEBC

Enclosure IEC:

IP43

Voltage:

230/460

Product Information Packet
