100HP LEESON 1785RPM 405TC TEBC 3PH MOTOR 810087

LEESON Catalog Number:  810087.00
Description:  100HP,1785RPM,405TC,TEBC,3PH,60HZ,INVERTER DUTY
Ship Weight:  1420 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

APPLICATIONS: Designed for inverter or vector applications where up to 2000:1 constant torque speed range is required. Typical uses include, material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps, compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

FEATURES:

  • Subject to Availability
  • Cast Iron Frame
  • Class H inverter-rated IRIS insulation system
  • Constant torque operation from 0 to base RPM rating on Vector Drives
  • Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes
  • Designed for optimum performance with IGBT inverters - not for across-the-line starting
  • C-face with rigid base through 100HP
  • Normally closed thermostats (one per phase)
  • Continuous duty at 40*C ambient
  • 1.0 Service Factor (Class "B" rise on TEBC motors)
  • Premium quality, cast iron frame and endbells
  • 284T and larger are blower cooled with a separately powered three-phase blower motor to provide added cooling at low speeds
  • Ball bearings (Roller bearings available 360-frame and larger)
  • Field convertible to F2 mounting
  • Encoder provisions included on opposite drive end
  • Three year warranty
  • Meets NEMA MG1, parts 30 & 31
Volts 230 Volts 460 Volts
F.L. Amps 230 F.L. Amps 115 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 100 Duty CONTINUOUS TYPE TBS
KW 75 Model # 405THFS8329
Frame 405TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design A Code J
Insul Class H Protection NOT Therm.Prot.
Eff 100% 94.5 Eff 75%   PF 86.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6313
CC Number EXEMPT CE Yes Bearing PE 6316
Load Type   Inverter Type   Speed Range 1.5 X BASE SPEED
Motor Wt. 1420 LB Enclosure TEBC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

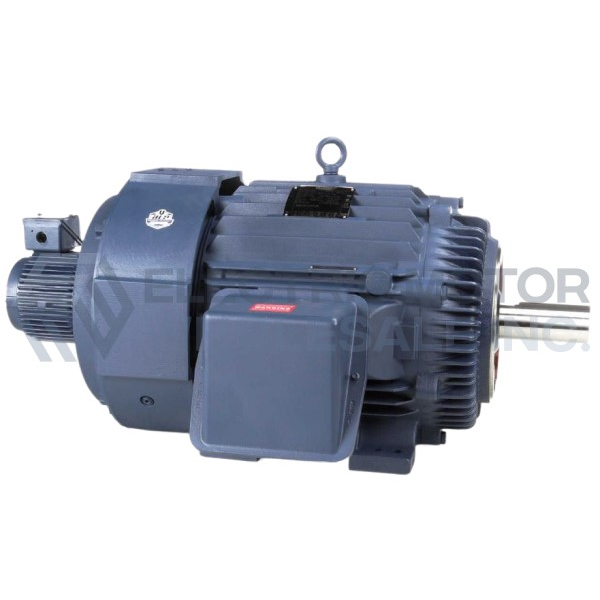

100HP LEESON 1785RPM 405TC TEBC 3PH MOTOR 810087
Click Image to Enlarge
Manufacturer Part Number: 810087.00
Stock # 810087
