25HP LEESON 1765RPM 284TC TEBC 3PH Inverter Duty Motor 810011.00

25HP LEESON 1765RPM 284TC TEBC 3PH Inverter Duty Motor 810011.00

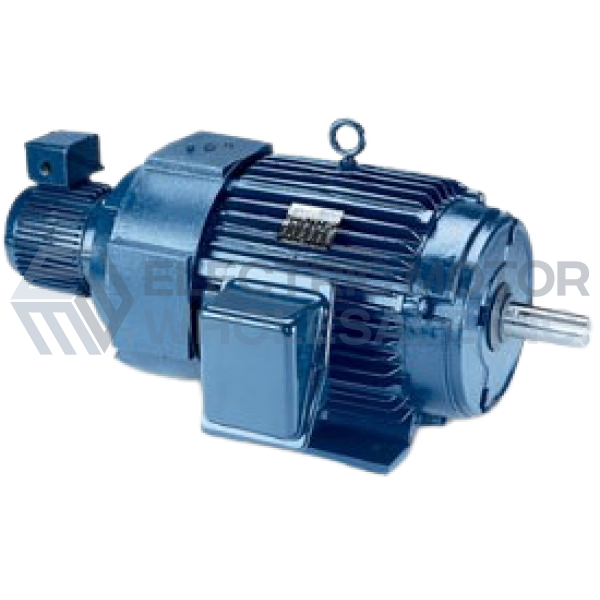

Picture is for reference only.

Part Number:

810011.00

Model/Spec Number:

284THFPA8060

Manufacturer:

Leeson Obsolete
810011.00 LEESON 25HP Inverter Duty Electric Motor is designed for inverter or vector applications where up to 2000:1 constant torque speed range is required.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

439 lbs

Dimensions:

28 x 47 x 22 inches

HS Code:

8501.52.0000

UPC:

691720211168

Technical Details

Brand:

Leeson

Application:

Vector Duty

Output HP:

25

Output KW:

18.7

Output RPM:

1765

Frame Size NEMA:

284TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEBC

Enclosure IEC:

IP43

Voltage:

230/460

Product Information Packet
