30HP LEESON 1170RPM 326TC TEBC 3PH MOTOR 810005

LEESON Catalog Number:  810005.00
Description:  30HP,1170RPM,326TC,TEBC,3PH,60HZ,INVERTER DUTY
Ship Weight:  696 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

APPLICATIONS: Designed for inverter or vector applications where up to 2000:1 constant torque speed range is required. Typical uses include, material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps, compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

FEATURES:

  • Cast Iron Frame
  • Class H inverter-rated IRIS insulation system
  • Constant torque operation from 0 to base RPM rating on Vector Drives
  • Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes
  • Designed for optimum performance with IGBT inverters - not for across-the-line starting
  • C-face with rigid base through 100HP
  • Normally closed thermostats (one per phase)
  • Continuous duty at 40*C ambient
  • 1.0 Service Factor (Class "B" rise on TEBC motors)
  • Premium quality, cast iron frame and endbells
  • 284T and larger are blower cooled with a separately powered three-phase blower motor to provide added cooling at low speeds
  • Ball bearings (Roller bearings available 360-frame and larger)
  • Field convertible to F2 mounting
  • Encoder provisions included on opposite drive end
  • Three year warranty
  • Meets NEMA MG1, parts 30 & 31
Volts 230 Volts 460 Volts
F.L. Amps 80.5 F.L. Amps 40 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1200 Hertz 60
HP 30 Duty CONTINUOUS TYPE TBS
KW 22.4 Model # 326THFPA8090BB
Frame 326TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design A Code G
Insul Class H Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 78
UL V-INS, CONST UL REC CSA No Bearing OPE 6311
CC Number EXEMPT CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range 1.5 X BASE SPEED
Motor Wt. 696 LB Enclosure TEBC Lubrication STANDARD
Nameplate 92721-BM-X-HJK-X Mounting RIGID Rotation REV

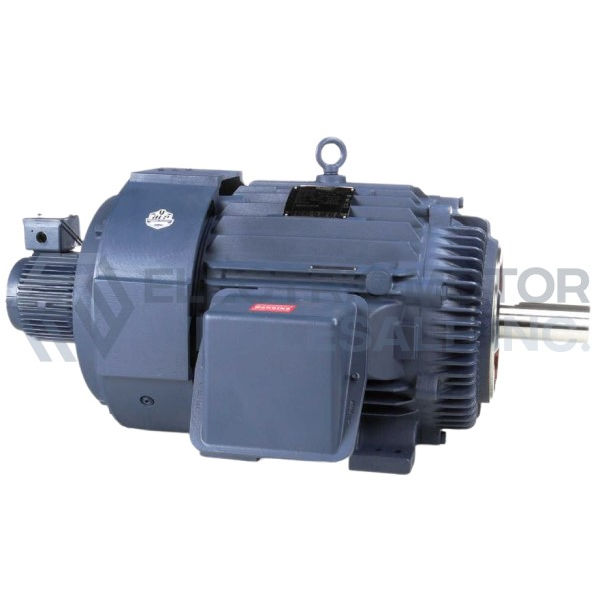

30HP LEESON 1170RPM 326TC TEBC 3PH MOTOR 810005
Click Image to Enlarge
Manufacturer Part Number: 810005.00
Stock # 810005
Price: $6,883.00
Compare At: $17,380.00
