40HP LEESON 1800RPM 324JP DP 3PH JP PUMP MOTOR G801055.00

40HP LEESON 1800RPM 324JP DP 3PH JP PUMP MOTOR G801055.00

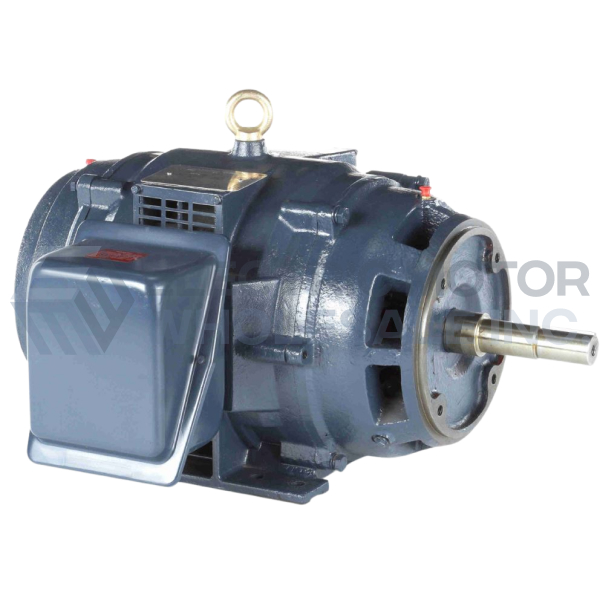

Picture is for reference only.

Part Number:

G801055.00

Model/Spec Number:

324TTDP14052

Manufacturer:

Leeson Obsolete
G801055.00 LEESON 40HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

40

Output KW:

30

Output RPM:

1800

Frame Size NEMA:

324JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 230 Volts 460 Volts 190/380
F.L. Amps 97 F.L. Amps 48.5 F.L. Amps 88/44
S. F Amps 110 S. F Amps 55 S. F Amps 100/50
RPM 1800 Hertz 60/50
HP 40 Duty CONTINUOUS TYPE TD
KW 30 Model Number 324TTDP14052AAAA
Frame 324JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93 Eff 75%   PF 82.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 311
CC Number EXEMPT CE Yes Bearing PE 312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 487 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
