30HP LEESON 1780RPM 286JM DP 3PH ULTIMATE-E PUMP MOTOR G801029.00

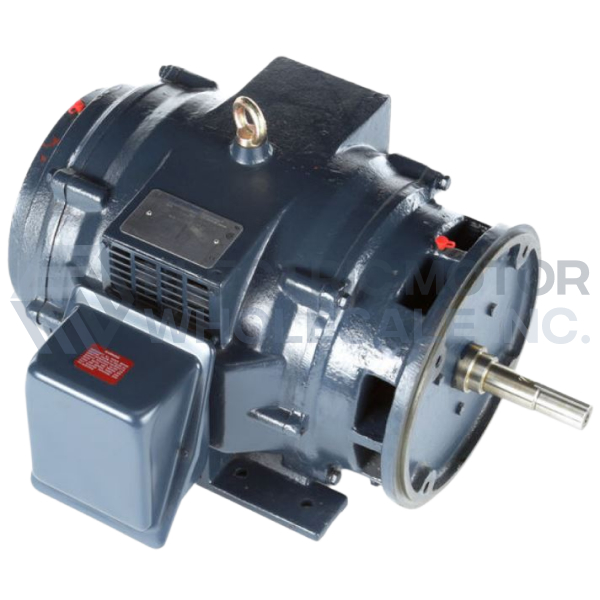

Picture is for reference only.

Part Number:

G801029.00

Model/Spec Number:

286TTDP14053

Manufacturer:

Leeson Obsolete

G801029.00 LEESON 30HP Three Phase Premium JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.0000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	30
Output KW:	22.4
Output RPM:	1780
Frame Size NEMA:	286JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	230/460

Documentation

Motor Drawing REF DASH-1425

Connection Diagram

Additional Information

Volts	230	Volts	460	Volts	190/380
F.L. Amps	72	F.L. Amps	36	F.L. Amps	73/36.5
S. F Amps	82	S. F Amps	41	S. F Amps
RPM	1800	Hertz	60/50
HP	30	Duty	CONTINUOUS	TYPE	TD
KW	22.4	Model Number	286TTDP14053AA
Frame	286JM	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	G
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	92.4	Eff 75%		PF	84
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6210
CC Number	CC005A	CE	Yes	Bearing PE	6311
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	437 LB	Enclosure	DP	Lubrication	STANDARD
Nameplate	92720-BM-X-HJKNP-A-X-X	Mounting	RIGID	Rotation	REV
