40HP LEESON 3600RPM 286JM DP 3PH MOTOR 199971.00

LEESON 199971.00 has been superseded by LEESON B199971.00

Catalog Number:  199971.00
Model Number:  C286T34DK4
Description:  40HP,3600RPM,286JM,DP,3PH,60HZ,JM PUMP
Ship Weight:  470 lbs.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 89 F.L. Amps 44.5 F.L. Amps 81/40.5
S. F Amps 103 S. F Amps 51.5 S. F Amps
RPM 3600 Hertz 60/50
HP 40 Duty CONTINUOUS TYPE TD
KW 30 Model # C286T34DK4A
Frame 286JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 89.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6211
CC Number CC005A CE Yes Bearing PE 6211
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure DP Lubrication STANDARD
Nameplate 93405-L-N-ABDFH-A-C Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. EE7308AA-LE
Cust Part No   Outline SS620314 Ext. Diag2
Packaging N Outline Dash No   Winding CHT28620003
Carton Label       GROUP:
Iris   Paint BLUE - LEESON (ENAMEL) Test Card

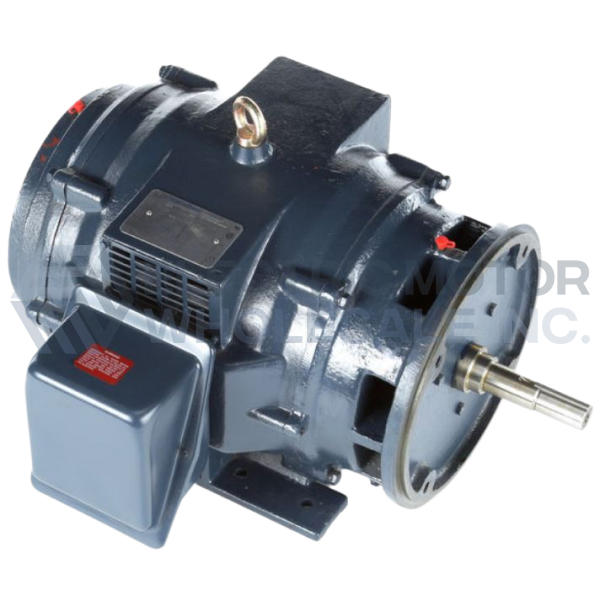

40HP LEESON 3600RPM 286JM DP 3PH MOTOR 199971.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 199971.00
Stock # 199971
