50HP LEESON 3560RPM 324TS DP 3PH ULTIMATE-E MOTOR 199713.00

LEESON 199713.00 has been Superseded by B199713.00

Catalog Number:  199713.00
Model Number:  C324T34DB6A
Description:  50HP,3560RPM,324TS,DP,3PH,60/50HZ,ULTIMATE-E
Ship Weight:  617 lbs.
Volts 230   Volts 460   Volts 190/380
FL Amps 114   FL Amps 57   FL Amps 111/55.5
SF Amps 130   SF Amps 65   SF Amps 127/63.5
RPM 3600   Hertz 60/50
HP 50   Duty CONTINUOUS   Type TD
KW 37   SF 1.15   Phase 3
Frame 324TS   Design B   KVA Code G
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 88
Eff(100%) 93   CSA Y   Bearing OPE 6212
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6212
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 617 LB   Enclosure DP   Lubrication VERIFY
Nameplate 93405-L-N-ABDFH-B-D   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging N
      Winding CHT32420003   Carton Label
      Group 1   Iris
Paint BLUE (ENAMEL)   Hazardous Location NONE   Test Card

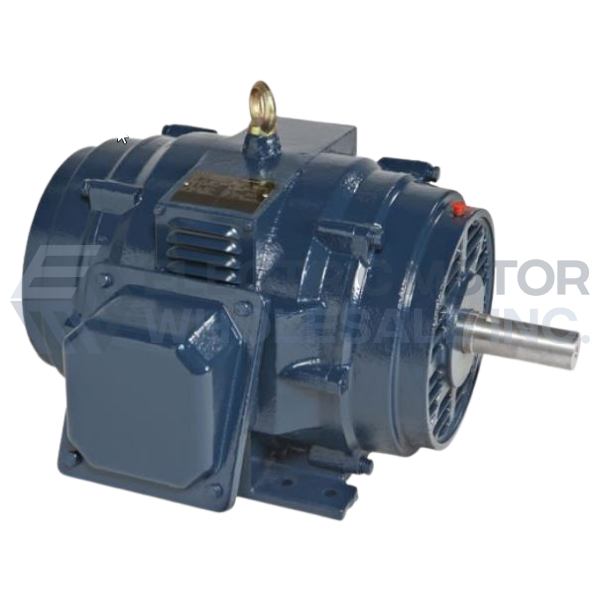

50HP LEESON 3560RPM 324TS DP 3PH ULTIMATE-E MOTOR 199713.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 199713.00
Stock # 199713
