Electric Motors

/

...Discontinued Electric Motors

/

...Leeson Discontinued Motors

/

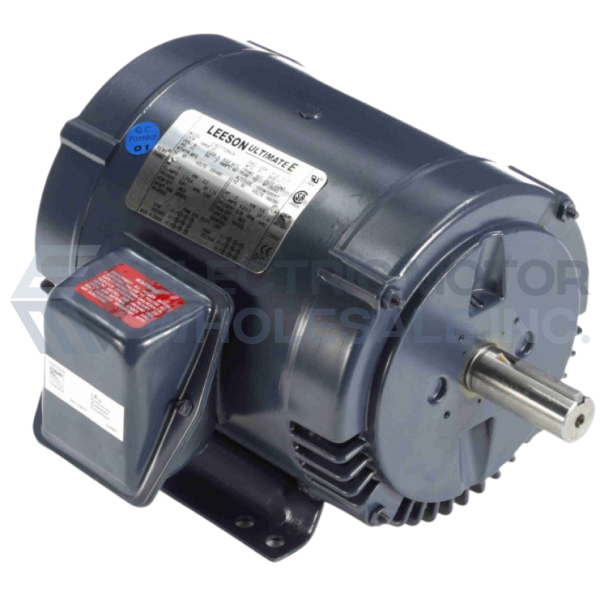

3HP LEESON 1760RPM 182T DP 3PH ULTIMATE-E MOTOR 199687.00

3HP LEESON 1760RPM 182T DP 3PH ULTIMATE-E MOTOR 199687.00


Part Number:

199687.00

Model/Spec Number:

C182T17DB62

Manufacturer:

Leeson Obsolete
199687.00 LEESON 3HP ULTIMATE-E motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

75 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.52.4000

UPC:

691720042519

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1760

Frame Size NEMA:

182T

Mount NEMA:

With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Product Information Packet
