2HP LEESON 1200RPM 184T DP 3PH ULTIMATE-E MOTOR 199686.00

LEESON 199686.00 has been Superseded by B199686.00

Catalog Number:  199686.00
Model Number:  C184T11DB10A
Description:  2HP,1200RPM,184T,DP,3PH,60/50HZ,ULTIMATE-E
Ship Weight:  79 lbs.
Volts 230   Volts 460   Volts 190/380
FL Amps 5.8   FL Amps 2.9   FL Amps 5.2/2.6
SF Amps 6.6   SF Amps 3.3   SF Amps 6/3
RPM 1200   Hertz 60/50
HP 2   Duty CONTINUOUS   Type TD
KW 1.49   SF 1.15   Phase 3
Frame 184T   Design B   KVA Code J
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 74
Eff(100%) 87.5   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6206
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 79 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 93405-L-N-ABDHF-B-D   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging N
      Winding CHT18460008   Carton Label
      Group 1   Iris
Paint BLUE (ENAMEL)   Hazardous Location NONE   Test Card

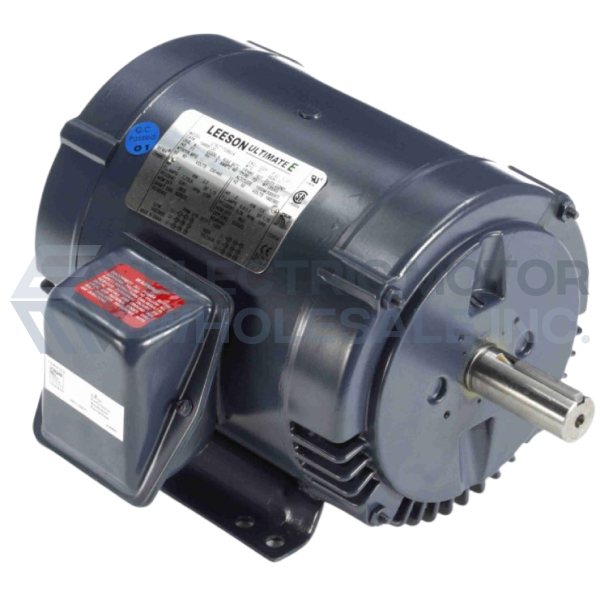

2HP LEESON 1200RPM 184T DP 3PH ULTIMATE-E MOTOR 199686.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 199686.00
Stock # 199686
