15HP LEESON 3600RPM 215JM DP 3PH MOTOR 199091.00

LEESON 199091.00 has been Superseded by B199091.00

Catalog Number:  199091.00 -FREE Ground Shipping in USA
Model Number:  C215T34DK47
Description:  15HP,3600RPM,215JM,DP,3PH,60HZ,JM PUMP
Ship Weight:  134 lbs.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 35 F.L. Amps 17.5 F.L. Amps 28/14
S. F Amps 40.5 S. F Amps 20.2 S. F Amps
RPM 3600 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TD
KW 11.2 Model # C215T34DK47A
Frame 215JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure DP Lubrication STANDARD
Nameplate 93405-L-N-ABDFH-B-F Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. EE7308
Cust Part No   Outline SS620312 Ext. Diag2
Packaging N Outline Dash No   Winding CHT21520006
Carton Label       GROUP:
Iris   Paint BLUE (ENAMEL) Test Card

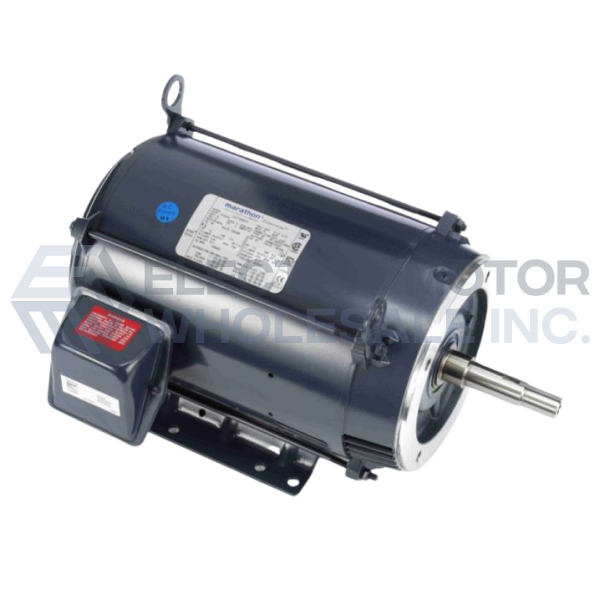

15HP LEESON 3600RPM 215JM DP 3PH MOTOR 199091.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 199091.00
Stock # 199091
