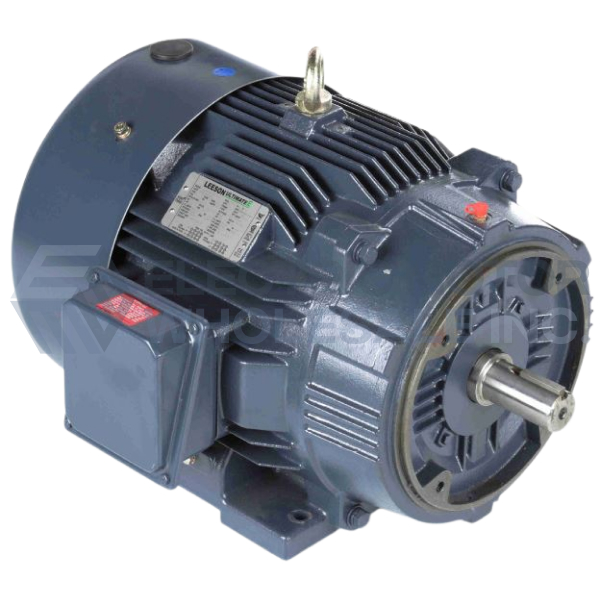

40HP LEESON 3560RPM 324TSC TEFC 3PH ULTIMATE-E MOTOR 199067.00

40HP LEESON 3560RPM 324TSC TEFC 3PH ULTIMATE-E MOTOR 199067.00


Part Number:

199067.00

Model/Spec Number:

C324T34FK1

Manufacturer:

Leeson Obsolete
199067.00 LEESON 40HP ULTIMATE-E three phase motor carries a three-year warranty and exceeds the mandated efficiencies of EPact and NEMA Premium.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

884 lbs

Dimensions:

13 x 24 x 13 inches

HS Code:

8501.53.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

40

Output KW:

30-35

Output RPM:

1900-4000 (2P)

Frame Size NEMA:

324TSC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Motor Drawing

Wiring Diagram
