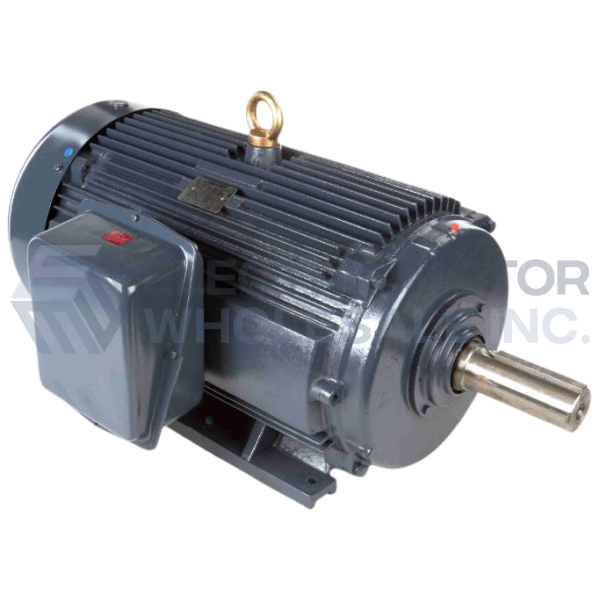

25HP LEESON 1775RPM 284T TEFC 3PH ULTIMATE-E MOTOR 194228.00

25HP LEESON 1775RPM 284T TEFC 3PH ULTIMATE-E MOTOR 194228.00


Part Number:

194228.00

Model/Spec Number:

C284T17FB9

Manufacturer:

Leeson Obsolete
194228.00 LEESON 25HP ULTIMATE-E Motor with Roller Bearings carries a three year warranty and meets or exceeds the mandated efficiencies of NEMA and EPAct. These motors have roller bearings at the drive end only for belted load operation only.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

510 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.53.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

25

Output KW:

18.7

Output RPM:

1775

Frame Size NEMA:

284T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Motor Drawing

Wiring Diagram
