7.5HP LEESON 1180RPM D132MD IP55 3PH IEC MOTOR 193344

LEESON 193116.60 has been Superseded by 193344.60

Catalog Number:  193344.60
Model Number: C132T11FZ63
Description:  7.5HP,1180RPM,D132MD,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  180 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON IEC Metric-dimensioned AC motors meeting North American performance standards, including 1.15 service factor and EPACT efficiencies. Motors have both B5 flange mounting and B3 base

  • Cast Iron Frame
  • Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
  • D flange (B5) and rigid base (B3) mounting
  • “Captive Shaft” keyway.
  • Drilled and tapped shaft.
  • Oil Seals on both the drive end and non drive end.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Class F insulation system with Class B temperature rise or lower.
  • Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
    with 60Hz and 50Hz data.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • Special design steel fan cover and low-noise fan maximize airflow efficiency.
  • Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
    in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
  • Terminal Boards included. 230/460V motors have 9 leads.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
  • IP55 weatherproof enclosure allows for use in wide range application.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 21.6 F.L. Amps 10.8 F.L. Amps 19/9.5
S. F Amps 23.8 S. F Amps 11.9 S. F Amps 22/11
RPM 1200 Hertz 60/50
KW 5.6 Model # C132T11FZ63AA
Frame 132M Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 180 LB Enclosure IP55 Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

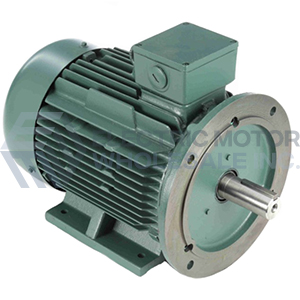

7.5HP LEESON 1180RPM D132MD IP55 3PH IEC MOTOR 193344
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193344.60
Stock # 193344
Price: $948.00
Compare At: $2,448.00
