30HP LEESON 1780RPM 180L TEFC IP55 3PH B3 IEC PASSPORT MOTOR 193325.60

30HP LEESON 1780RPM 180L TEFC IP55 3PH B3 IEC PASSPORT MOTOR 193325.60

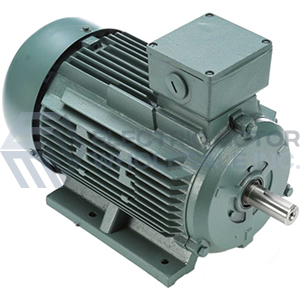

TEFC 112M.jpg
Picture is for reference only.

Part Number:

193325.60

Model/Spec Number:

C180T17FZ42

Manufacturer:

Leeson Obsolete
193325.60 LEESON 30HP PASSPORT IEC Motor meets North American performance standards and premium energy efficiency mandates and have a 1.15 service factor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

466 lbs

Dimensions:

16 x 25 x 16 inches

HS Code:

8501.52.0000

UPC:

691720001837

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

30

Output KW:

22.4

Output RPM:

1780

Frame Size IEC:

180L

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet
