25HP LEESON 1775RPM D180M IP55 3PH IEC MOTOR 193322.60

LEESON 193151.60 has been Superseded by 193322.60

Catalog Number:  193322.60
Model Number: C180T17FZ41
Description:  25HP,1775RPM,D180M,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  393 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • Premium efficiency
  • Heavy-duty cast iron construction includes frame, endbells and conduit box.
  • 48mm Output shaft diameter
  • Non USA manufactured
  • Terminal Boards included. 230/460V motors, 132-frame and larger have 12 leads and 9 post terminal boards, 230/460V motors, smaller than 132-frame have 9 leads and 6 post terminal boards.
  • IP55 weatherproof enclosure allows for use in a wide range of applications.
  • D flange (B5) and C face (B14) models available. Field conversion kit also offered.
  • Drilled and tapped shaft.
  • Oil seals on both the drive and non drive end.
  • Cast iron mounting feet are precision machined for accurate alignment.
  • Class F Insulation system with Class B temperature rise or lower.
  • Stainless steel “Full Fact” nameplate with information on motor efficiency and power factor. Stamped with 60 Hz and 50 Hz data.
  • Steel fan cover.
  • Non-sparkling fan. Small size reduces noise and enhances efficiency.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Conduit box with neoprene gaskets. Reposition metric “PG” threaded lead exit by rotating box in 90 degree increments. Motors 132 frame and larger have second lead exit hole for auxiliary box. Box is fixed at F3 location.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 58.5 F.L. Amps 29.3 F.L. Amps 60/30
S. F Amps 67 S. F Amps 33.5 S. F Amps 69/34.5
RPM 1800 Hertz 60/50
HP 25 Duty CONTINUOUS TYPE TW
KW 18.7 Model # C180T17FZ41A
Frame 180M Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93.6 Eff 75%   PF 85
UL NONE CSA No Bearing OPE 6311
CC Number CC005A CE Yes Bearing PE 6311
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 393 LB Enclosure TEFC Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

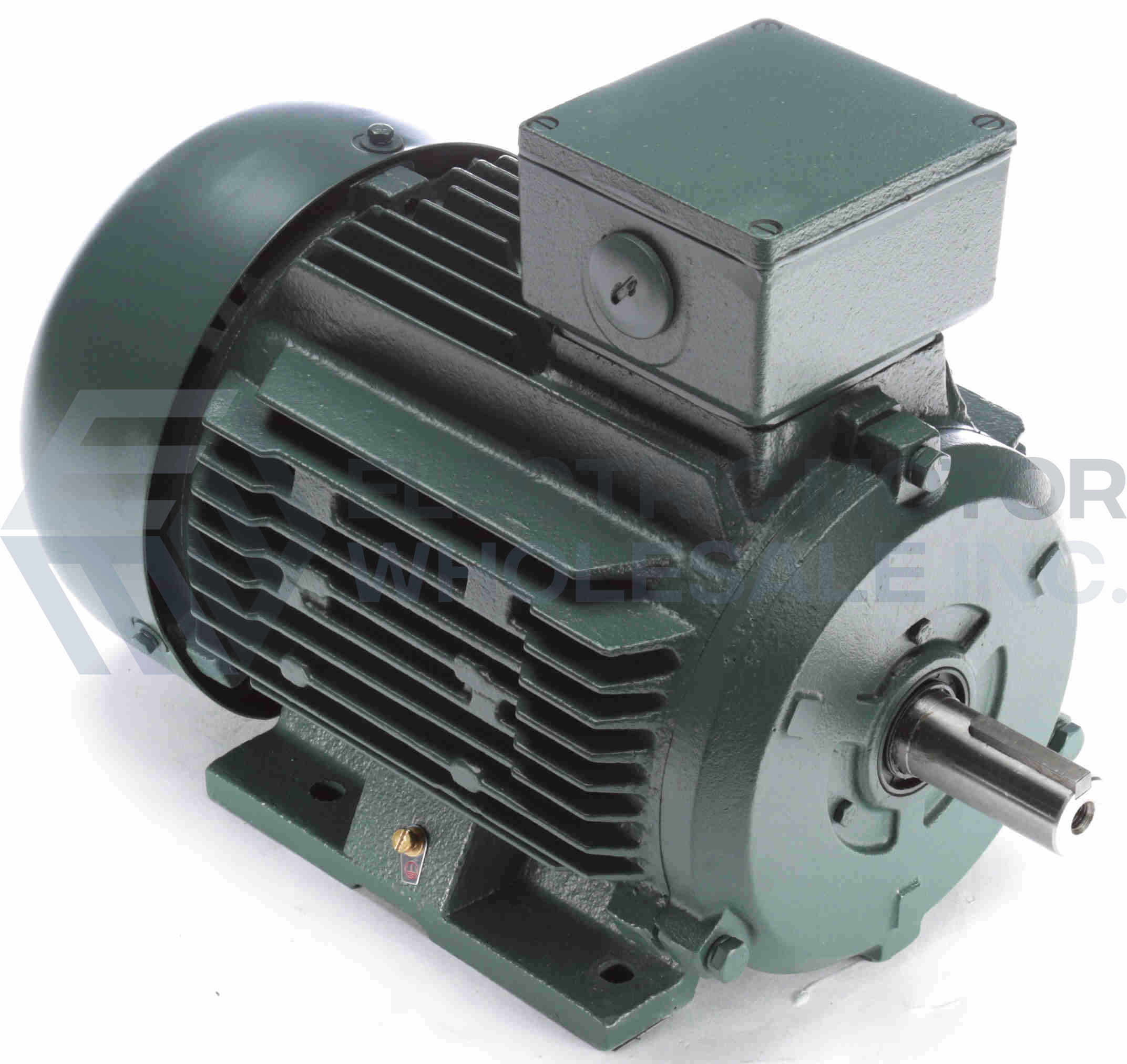

25HP LEESON 1775RPM D180M IP55 3PH IEC MOTOR 193322.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193322.60
Stock # 193322
Price: $2,168.00
Compare At: $4,818.00
