15HP LEESON 1750RPM D160M IP55 3PH IEC MOTOR 193316

LEESON 193131.00 has been Superseded by 193316.60

Catalog Number:  193316.60
Model Number: C160T17FZ43
Description:  15HP,1750RPM,D160M,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight: 264 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.


CSA: File number LR62104
UL: File number E57948 for motors produced June 2003 and later.

  • Premium efficient
  • Terminal Boards included. 230/460V motors, 132-frame and larger have 12 leads and 9 post terminal boards, 230/460V motors, smaller than 132-frame have 9 leads and 6 post terminal boards.
  • IP55 weatherproof enclosure allows for use in a wide range of applications.
  • D flange (B5) and C face (B14) models available. Field conversion kit also offered.
  • Drilled and tapped shaft.
  • Oil seals on both the drive and non drive end.
  • Cast iron mounting feet are precision machined for accurate alignment.
  • Class F Insulation system with Class B temperature rise or lower.
  • Stainless steel “Full Fact” nameplate with information on motor efficiency and power factor. Stamped with 60 Hz and 50 Hz data.
  • Steel fan cover.
  • Non-sparkling fan. Small size reduces noise and enhances efficiency.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Heavy-duty cast iron construction includes frame, endbells and conduit box.
  • Conduit box with neoprene gaskets. Reposition metric “PG” threaded lead exit by rotating box in 90 degree increments. Motors 132 frame and larger have second lead exit hole for auxiliary box. Box is fixed at F3 location.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 36 F.L. Amps 18 F.L. Amps 32/16
S. F Amps 41 S. F Amps 20.5 S. F Amps 37/18.5
RPM 1800 Hertz 60/50
KW 11.2 Model # C160T17FZ43 A
Frame DF160M Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93.4 Eff 75%   PF 83.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6209
CC Number CC005A CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 264 LB Enclosure TEFC Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

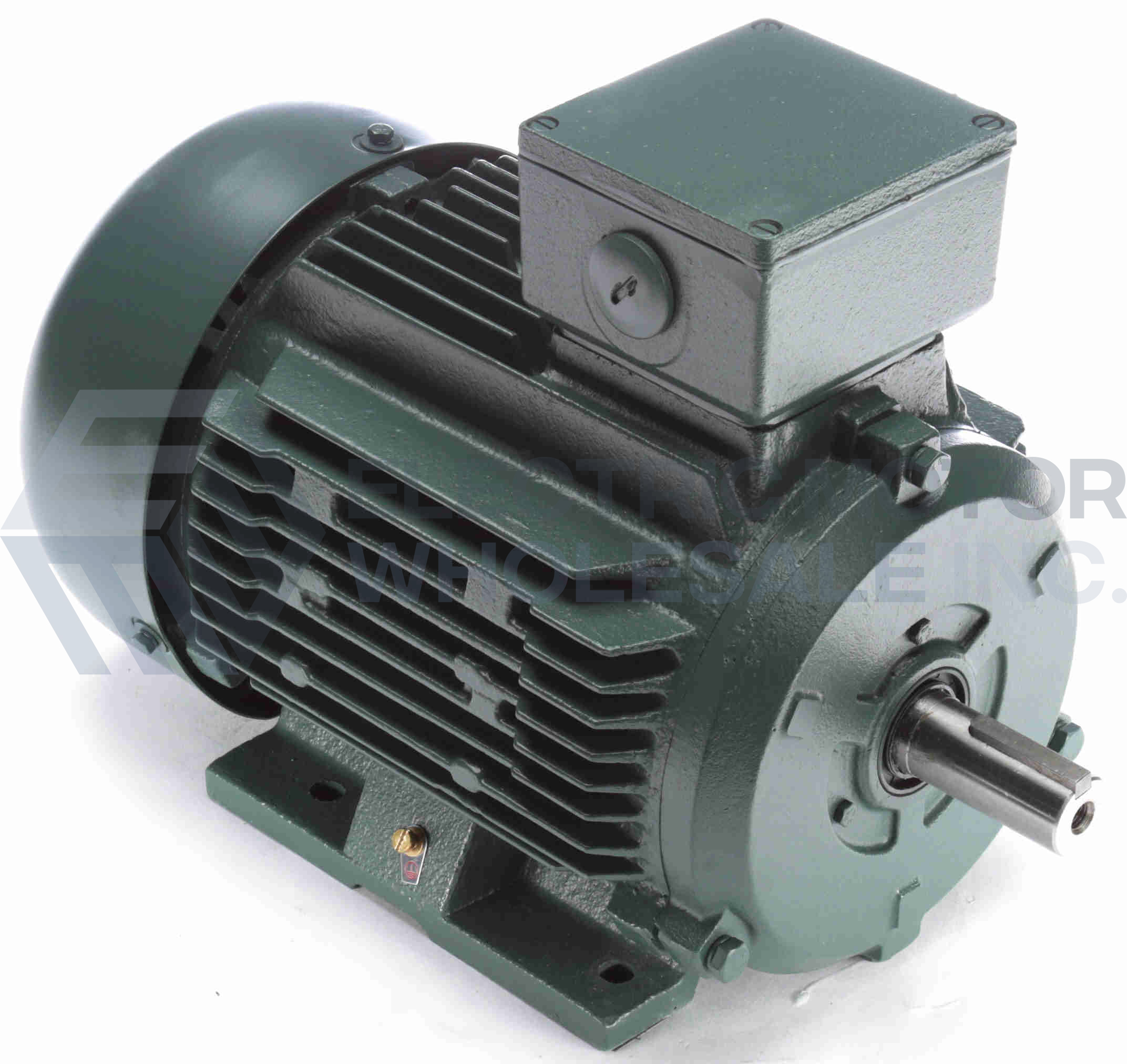

15HP LEESON 1750RPM D160M IP55 3PH IEC MOTOR 193316
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193316.60
Stock # 193316
Price: $1,429.00
Compare At: $3,343.00
