10HP LEESON 1180RPM D160M IP55 3PH IEC MOTOR 193314.00

LEESON 193122.60 has been Superseded by 193314.60

Catalog Number:  193314.60 - FREE Ground Shipping In USA
Model Number: C160T11FZ39
Description:  10HP,1180RPM,D160M,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  262 lbs.

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • Cast Iron Frame
  • Premium efficient
  • Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • “Captive Shaft” keyway.
  • Drilled and tapped shaft.
  • Oil Seals on both the drive end and non drive end.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Class F insulation system with Class B temperature rise or lower.
  • Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
    with 60Hz and 50Hz data.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • Special design steel fan cover and low-noise fan maximize airflow efficiency.
  • Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
    in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
  • Terminal Boards included. 230/460V motors have 9 leads.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
  • IP55 weatherproof enclosure allows for use in wide range application.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 28.8 F.L. Amps 14.4 F.L. Amps 25.6/12.8
S. F Amps 32 S. F Amps 16 S. F Amps 28/14
RPM 1200 Hertz 60/50
KW 7.5 Model # C160T11FZ39A
Frame 160M Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.1 Eff 75%   PF 71.6
UL NONE CSA No Bearing OPE 6209
CC Number CC005A CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 262 LB Enclosure TEFC Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

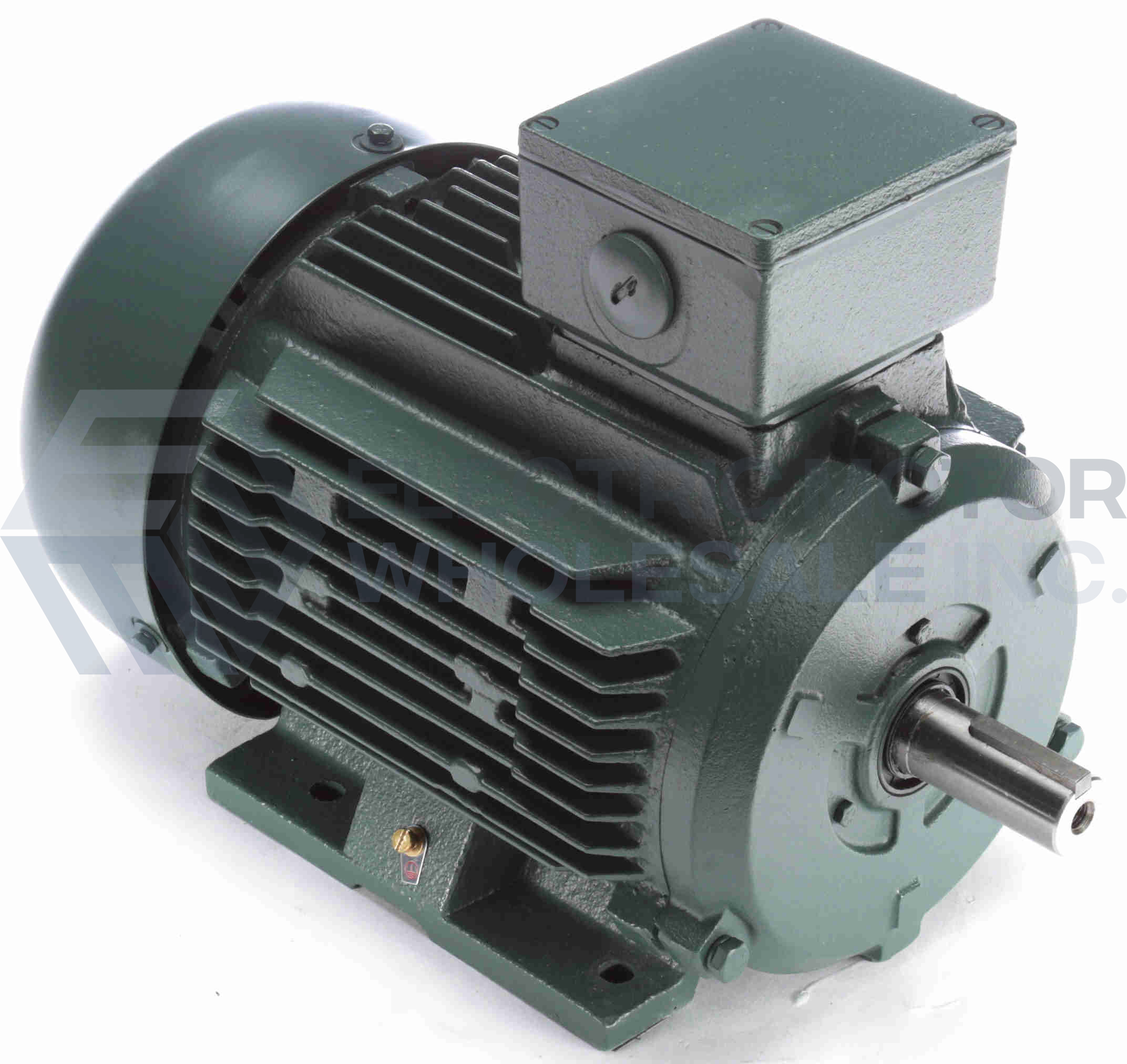

10HP LEESON 1180RPM D160M IP55 3PH IEC MOTOR 193314.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193314.60
Stock # 193314.60
Price: $1,509.00
Compare At: $3,557.00
