7.5HP LEESON 3450RPM D132S IP55 3PH IEC MOTOR 193309.60

LEESON 193110.60 has been Superseded by 193309.60

Catalog Number:  193309.60
Model Number: C132T34FZ45
Description:  7.5HP,3450RPM,D132S,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  152 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • Cast Iron Frame
  • Premium efficiency
  • Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • “Captive Shaft” keyway.
  • Drilled and tapped shaft.
  • Oil Seals on both the drive end and non drive end.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Class F insulation system with Class B temperature rise or lower.
  • Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
    with 60Hz and 50Hz data.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • Special design steel fan cover and low-noise fan maximize airflow efficiency.
  • Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
    in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
  • Terminal Boards included. 230/460V motors have 9 leads.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
  • IP55 weatherproof enclosure allows for use in wide range application.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 18 F.L. Amps 9 F.L. Amps 14.4/7.2
S. F Amps 20.4 S. F Amps 10.2 S. F Amps 16.4/8.2
RPM 3600 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C132T34FZ45A
Frame 132S Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 87
UL NONE CSA No Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 152 LB Enclosure TEFC Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

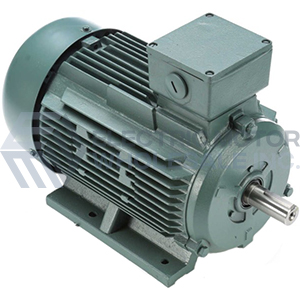

7.5HP LEESON 3450RPM D132S IP55 3PH IEC MOTOR 193309.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193309.60
Stock # 193309
Price: $637.00
Compare At: $1,770.00
