5.5HP LEESON 1750RPM D112M IP55 3PH IEC MOTOR 193307

LEESON 193101.60 has been Superseded by 193307.60

Catalog Number: 193307.60
Model Number: C112T17FZ21
Description:  5.5HP,1750RPM,D112M,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  114 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • Cast Iron Frame
  • Premium efficiency
  • Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • “Captive Shaft” keyway.
  • Drilled and tapped shaft.
  • Oil Seals on both the drive end and non drive end.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Class F insulation system with Class B temperature rise or lower.
  • Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
    with 60Hz and 50Hz data.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • Special design steel fan cover and low-noise fan maximize airflow efficiency.
  • Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
    in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
  • Terminal Boards included. 230/460V motors have 9 leads.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
  • IP55 weatherproof enclosure allows for use in wide range application.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 14 F.L. Amps 7 F.L. Amps 12.6/6.3
S. F Amps 16 S. F Amps 8 S. F Amps 14.4/7.2
RPM 1800 Hertz 60/50
HP 5 1/2 Duty CONTINUOUS TYPE TF
KW 4.10 Model # C112T17FZ21A
Frame DF112M Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 81
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6306
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 104 LB Enclosure TEFC Lubrication STANDARD
Nameplate 622232 Mounting RIGID Rotation REV

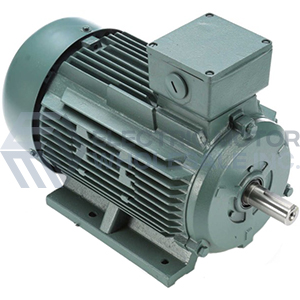

5.5HP LEESON 1750RPM D112M IP55 3PH IEC MOTOR 193307
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 193307.60
Stock # 193307
Price: $556.00
Compare At: $1,482.00
