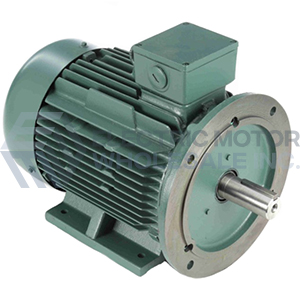

10HP LEESON 1750RPM D132MD IP55 3PH IEC MOTOR 193346.60
LEESON 193125.60 has been superseded by 193346.60
|Ship Weight:||208 lbs.|
This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team
LEESON IEC Metric-dimensioned AC motors meeting North American performance standards, including 1.15 service factor and EPACT efficiencies. Motors have both B5 flange mounting and B3 base
- Cast Iron Frame
- Premium efficiency
- Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
- D flange (B5) and rigid base (B3) mounting
- “Captive Shaft” keyway.
- Drilled and tapped shaft.
- Oil Seals on both the drive end and non drive end.
- High efficiency design utilizes low-loss steel laminations for optimum power and performance.
- Class F insulation system with Class B temperature rise or lower.
- Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
with 60Hz and 50Hz data.
- Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
- External grounding provision.
- Special design steel fan cover and low-noise fan maximize airflow efficiency.
- Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
- Terminal Boards included. 230/460V motors have 9 leads.
- CSA: File number LR33543
UL: File number E57948 for motors produced January 2004 and later
- IP55 weatherproof enclosure allows for use in wide range application.
|F.L. Amps||24||F.L. Amps||12||F.L. Amps||21.6/10.8|
|S. F Amps||28||S. F Amps||14||S. F Amps||24/12|
|KW||7.5||Model #||C132T17FZ46A A|
|Eff 100%||91.7||Eff 75%||PF||85|
|UL||Y-(LEESON UL REC)||CSA||Yes||Bearing OPE||6306|
|CC Number||CC005A||CE||Yes||Bearing PE||6308|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||174 LB||Enclosure||TEFC||Lubrication||STANDARD|
