Electric Motors

/

Discontinued Electric Motors

/

Leeson Discontinued Motors

/

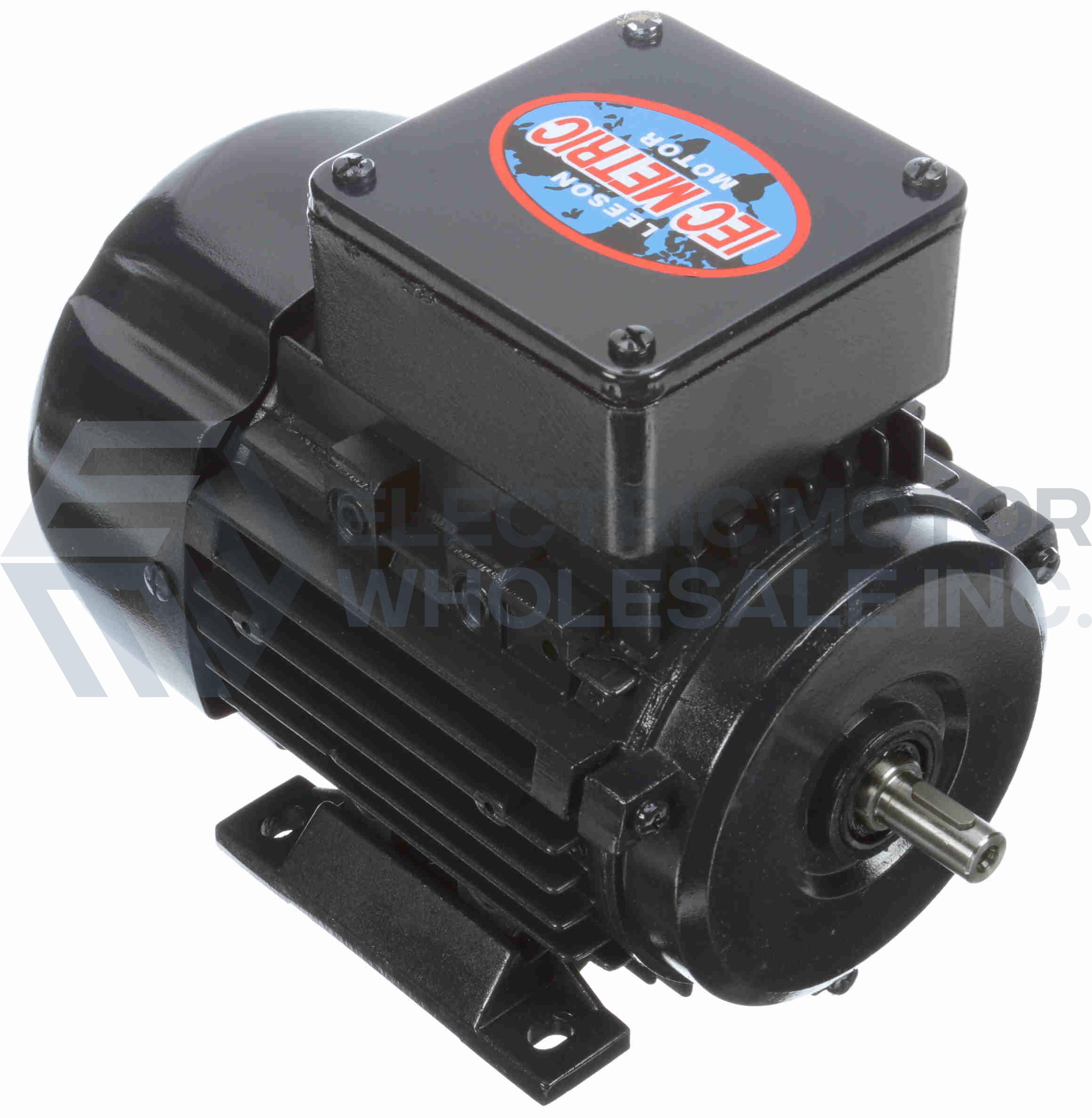

1.5HP LEESON 1745RPM 90S TEFC 575V 3PH B3 IEC MOTOR 192230.00

1.5HP LEESON 1745RPM 90S TEFC 575V 3PH B3 IEC MOTOR 192230.00


Part Number:

192230.00

Model/Spec Number:

C90T17FZ19

Manufacturer:

Regal Rexnord Commercial
192230.00 LEESON 1.5HP PASSPORT IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Non-Returnable

Item Discontinued

Click below to request an agent review potential options.

Weight:

41 lbs

Dimensions:

15 x 20 x 15 inches

HS Code:

8501.52.4000

UPC:

691720002124

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1745

Frame Size IEC:

90S

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

575

Product Information Packet

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • CSA: File number LR33543
  • UL: File number E57948 for motors produced January 2004 and later
