3HP LEESON 3600RPM 90L IP55 3PH IEC MOTOR 192209.00

LEESON 192080.00 has been Superseded by 192209.00

Catalog Number: 192209.00
Model Number: C90T34FZ14
Description:  3HP,3600RPM,90L,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  40 lbs.

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • Aluminum Frame
  • Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • “Captive Shaft” keyway.
  • Drilled and tapped shaft.
  • Oil Seals on both the drive end and non drive end.
  • High efficiency design utilizes low-loss steel laminations for optimum power and performance.
  • Class F insulation system with Class B temperature rise or lower.
  • Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
    with 60Hz and 50Hz data.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • Special design steel fan cover and low-noise fan maximize airflow efficiency.
  • Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
    in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
  • Terminal Boards included. 230/460V motors have 9 leads.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
  • IP55 weatherproof enclosure allows for use in wide range application.
Volts 230   Volts 460   Volts 200/400
FL Amps 7.2   FL Amps 3.6   FL Amps 8.4/4.2
SF Amps 8.2   SF Amps 4.1   SF Amps 9.6/4.8
RPM 3600   Hertz 60/50
HP 3   Duty CONTINUOUS   Type TF
KW 2.24   SF 1.15   Phase 3
Frame 90L   Design B   KVA Code K
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%) 86.5   PF 87.5
Eff(100%) 87.5   CSA Y   Bearing OPE 6205
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6205
CC Number NONE   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 40 LB   Enclosure TEFC   Lubrication VERIFY
Nameplate     Mounting B3   Rotation REV
Shaft Diam. 24 MM   Cust Part No.     Packaging B
      Winding QT9026   Carton Label INDIVIDUAL
      Group 3   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location NONE   Test Card

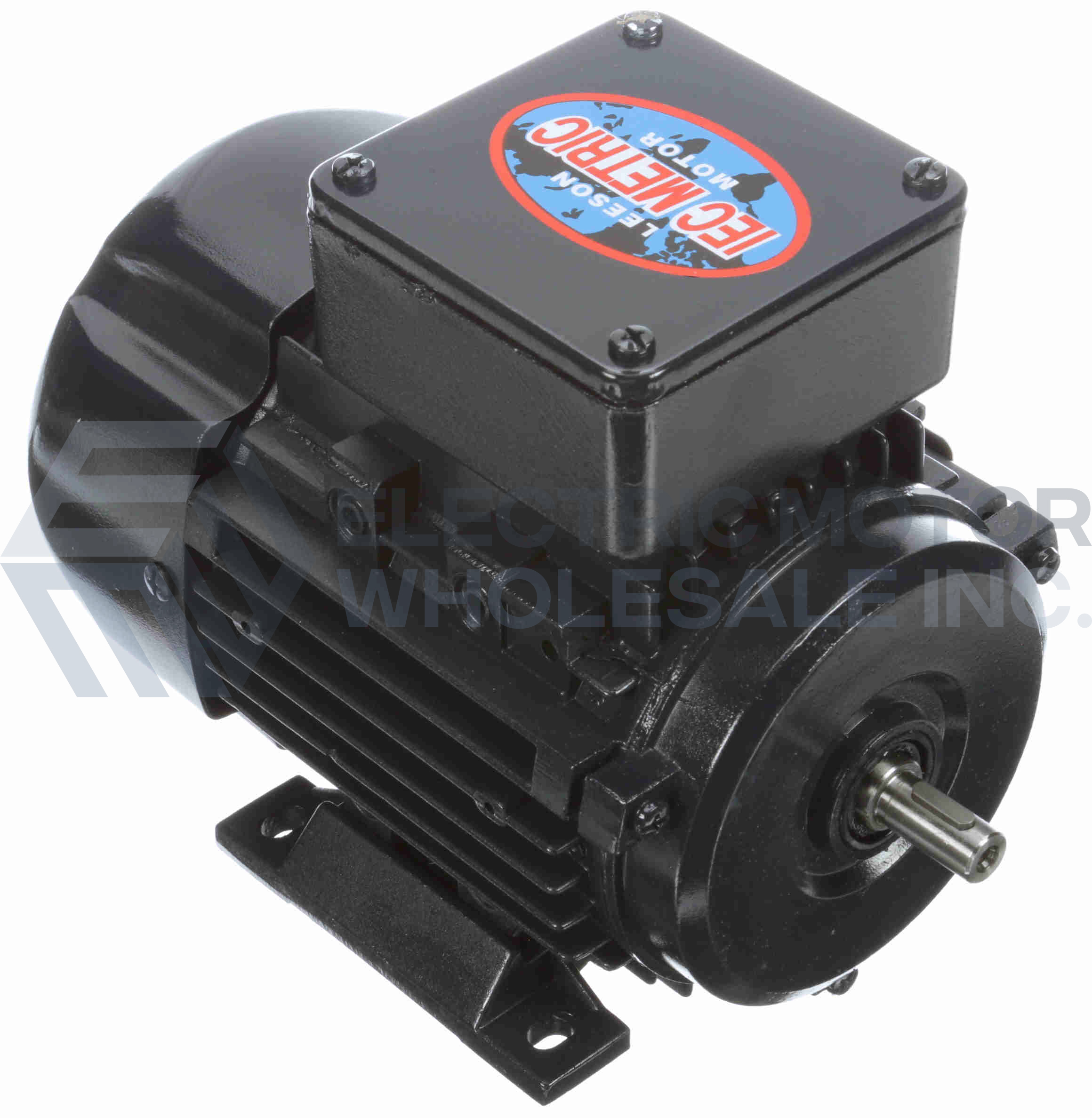

3HP LEESON 3600RPM 90L IP55 3PH IEC MOTOR 192209.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 192209.00
Stock # 192209
Price: $400.00
Compare At: $889.00
