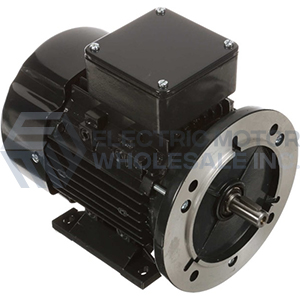

1.5HP LEESON 3600RPM D80D IP55 3PH IEC MOTOR 192064
LEESON 192064.00 has been superseded by 192245.30
|Ship Weight:||30 lbs.|
LEESON IEC Metric-dimensioned AC motors meeting North American performance standards, including 1.15 service factor and EPACT efficiencies. Motors have both B5 flange mounting and B3 base
- Aluminum Frame
- Removable feet.
- Drain Hole locations in four quadrants can be drilled-out for multi-position condensate drainage.
- D flange (B5) and rigid base (B3) mounting
- “Captive Shaft” keyway.
- Drilled and tapped shaft.
- Oil Seals on both the drive end and non drive end.
- High efficiency design utilizes low-loss steel laminations for optimum power and performance.
- Class F insulation system with Class B temperature rise or lower.
- Aluminum “full fact” nameplate with information on motor efficiency and power factor. Stamped
with 60Hz and 50Hz data.
- Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
- External grounding provision.
- Special design steel fan cover and low-noise fan maximize airflow efficiency.
- Conduit Box with neoprene gaskets. Reposition metric “PG” tapped lead exit hole by rotating box
in 90 degree increments. Move box to F1 or F2 position by relocating motor feet.
- Terminal Boards included. 230/460V motors have 9 leads.
- CSA: File number LR33543
UL: File number E57948 for motors produced January 2004 and later
- IP55 weatherproof enclosure allows for use in wide range application.
|F.L. Amps||4.0||F.L. Amps||2.0||F.L. Amps||4.4/2.2|
|S. F Amps||4.6||S. F Amps||2.3||S. F Amps||5.0/2.5|
|Eff 100%||84||Eff 75%||PF||83.6|
|CC Number||005A||CE||Yes||Bearing PE||6204|
|Load Type||Inverter Type||NONE||Speed Range||NAN|
|Motor Wt.||30 LB||Enclosure||IP55||Lubrication||STANDARD|
