1.5HP LEESON 3450RPM D80 IP55 3PH IEC MOTOR 192060.30

LEESON 192060.30 has been Superseded by 192242.00

Catalog Number:  192060.30
Model Number: C80T34FZ2
Description:  1.5HP,3450RPM,D80,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  30 lbs.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 4.0 F.L. Amps 2.0 F.L. Amps 4.4/2.2
S. F Amps 4.6 S. F Amps 2.3 S. F Amps 5.0/2.5
RPM 3600 Hertz 60/50
HP 1.5 Duty CONTINUOUS TYPE TF
KW 1.1 Model # C80T34FZ2C
Frame D80 Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 83.6
UL Yes CSA Yes Bearing OPE 6204
CC Number 005A CE Yes Bearing PE 6204
Load Type   Inverter Type NONE Speed Range NAN
Motor Wt. 30 LB Enclosure IP55 Lubrication STANDARD
Nameplate 081042 Mounting B3 Rotation REV

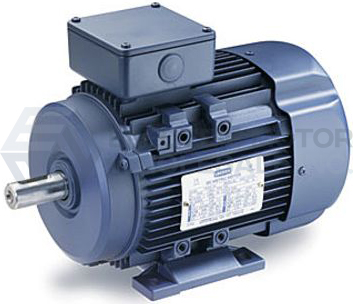

1.5HP LEESON 3450RPM D80 IP55 3PH IEC MOTOR 192060.30
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 192060.30
Stock # 192060
