1HP LEESON 1150RPM D90S TEFC IP55 3PH B3 IEC MOTOR 192052.00

1HP LEESON 1150RPM D90S TEFC IP55 3PH B3 IEC MOTOR 192052.00

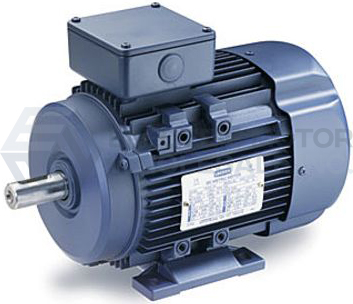

Picture is for reference only.

Part Number:

192052.00

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C90T11FZ1C
192052.00 LEESON 1HP IEC Motor meets North American performance standards and premium energy efficiency mandates and have a 1.15 service factor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

36 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

1150

Frame Size IEC:

D90S

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

  • D flange (B5) and C face (B14) models available. Field conversion kits also offered.
  • Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
  • External grounding provision.
  • CSA: File number LR33543
    UL: File number E57948 for motors produced January 2004 and later
