1HP LEESON 1725RPM D80 IP55 3PH IEC MOTOR 192051.00

LEESON 192051.00 has been superseded by 192241.00

Catalog Number:  192051.30
Model Number: C80T17FZ14
Description:  1HP,1725RPM,D80,IP55,3PH,60/50HZ,IEC METRIC
Ship Weight:  30 lbs.
Volts 230 Volts 460 Volts 200/400
F.L. Amps 3.2 F.L. Amps 1.6 F.L. Amps 3.8/1.9
S. F Amps 3.6 S. F Amps 1.8 S. F Amps 4.4/2.2
RPM 1800 Hertz 60/50
HP 1 Duty CONTINUOUS TYPE TF
KW .75 Model # C80T17FZ2C
Frame D80 Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 80
UL Yes CSA Yes Bearing OPE 6204
CC Number NONE CE Yes Bearing PE 6204
Load Type   Inverter Type NONE Speed Range NAN
Motor Wt. 30 LB Enclosure IP55 Lubrication STANDARD
Nameplate 081042 Mounting B3 Rotation REV

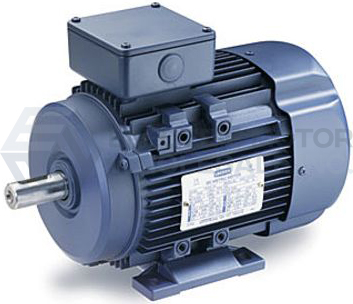

1HP LEESON 1725RPM D80 IP55 3PH IEC MOTOR 192051.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 192051.00
Stock # 192051
