192044.00 LEESON 3/4HP 3PH IEC MOTOR C71T34FZ6

Electric Motors

Discontinued Electric Motors

Leeson Discontinued Motors

3/4HP LEESON 3425RPM D71D TEFC IP55 3PH B3/B5 IEC MOTOR 192044.00

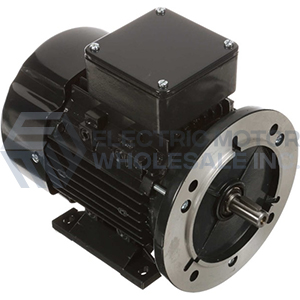

Picture is for reference only.

Part Number:

192044.00

Model/Spec Number:

C71T34FZ6

Manufacturer:

Leeson Obsolete

192044.00 LEESON 3/4HP PASSPORT IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Limited inventory available. Product will be discontinued once consumed.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

18 lbs

Dimensions:

10 x 14 x 12 inches

HS Code:

8501.51.4000

UPC:

691720036112

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	3/4
Output KW:	0.55
Output RPM:	3425
Frame Size IEC:	D71D
Mount IEC:	B3/B5 Foot/Flange
Enclosure NEMA:	TEFC
Enclosure IEC:	IP55
Voltage:	230/460

Documentation

Product Information Packet

Additional Information

LEESON AC METRIC MOTORS meet international standards and feature IP55 weatherproof enclosures, 60/50Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V) dual stamped nameplates, CE mark, and F3 conduit box location.

D flange (B5) and C face (B14) models available. Field conversion kits also offered.
Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
External grounding provision.
CSA: File number LR33543
UL: File number E57948 for motors produced January 2004 and later
