1/2HP LEESON 1130RPM 80 TEFC IP55 3PH B3 IEC MOTOR 192032.00

1/2HP LEESON 1130RPM 80 TEFC IP55 3PH B3 IEC MOTOR 192032.00

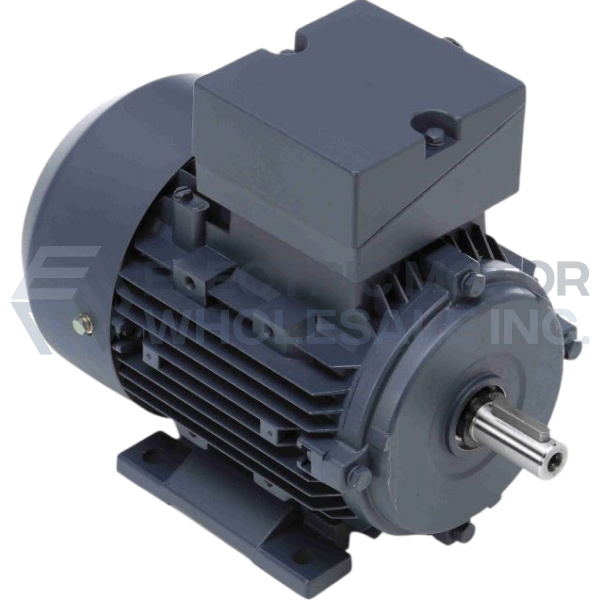

B3 ALUMINUM.jpg
Picture is for reference only.

Part Number:

192032.00

Model/Spec Number:

C80T11FZ2

Manufacturer:

Leeson Obsolete
192032.00 LEESON 1/2HP PASSPORT IEC Motor meets North American performance standards and premium energy efficiency mandates and have a 1.15 service factor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

24 lbs

Dimensions:

12 x 16 x 12 inches

HS Code:

8501.51.4000

UPC:

691720036013

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1/2

Output KW:

0.37

Output RPM:

1130

Frame Size IEC:

80

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet
