Home > Electric Motors > Discontinued Electric Motors > LEESON Discontinued AC Motors > 1/3HP LEESON 1075RPM 48YZ TEAO 1PH MOTOR 191911.00

1/3HP LEESON 1075RPM 48YZ TEAO 1PH MOTOR 191911.00

Catalog Number:  191911.00
Model Number:  A4P11NZ29
Description:  1/3HP,1075RPM,48YZ,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  26 lbs.
Volts 115   Volts 230   Volts
FL Amps 3.0   FL Amps 1.5   FL Amps
SF Amps     SF Amps     SF Amps
RPM 1075   Hertz 60
HP 1/3   Duty AIROVER   Type PN
KW 0.25   SF 1.0   Phase 1
Frame 48YZ   Design N   KVA Code C
Ambient 40   Protection AUTOMATIC   Therm.Prot. MEG65RX
Insulation Class B   Eff(75%)     PF 95
Eff(100%) 71   CSA Y   Bearing OPE
UL Y   CE N   Bearing PE
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 26 LB   Enclosure TENV   Lubrication POLYREX EM
Nameplate     Mounting SPECIAL   Rotation SELECTIVE CCW
Shaft Diam. 1/2 IN   Cust Part No.     Packaging 307997.99
      Winding QP5561   Carton Label
      Group 3   Iris
Paint NAN   Hazardous Location NONE   Test Card

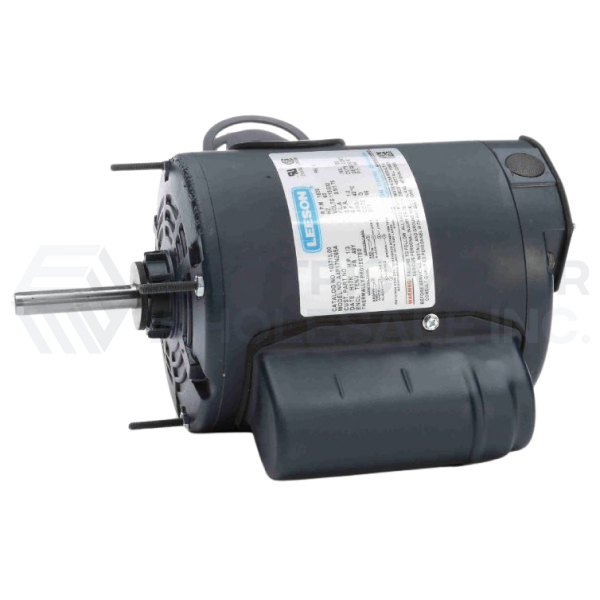

1/3HP LEESON 1075RPM 48YZ TEAO 1PH MOTOR 191911.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191911.00
Stock # 191911
