1/3HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191910.00

LEESON 191910.00 has been Superseded by 103716.00

Catalog Number:  191910.00
Model Number:  A4P17NZ66A
Description:  1/3HP,1625RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  15 lbs.
Volts 115 Volts 230 Volts
F.L. Amps 3.4 F.L. Amps 1.7 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP 1/3 Duty AIROVER TYPE PN
KW 0.25 Model # A4P17NZ66A
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design B Code N
Insul Class B Protection AUTOMATIC Therm.Prot. MEG61RX
Eff 100% 83 Eff 75%   PF 72
UL Yes CSA Yes Bearing OPE
CC Number   CE No Bearing PE
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 16 LB Enclosure TENV Lubrication POLYREX EM
Nameplate   Mounting SPECIAL Rotation SELECTIVE CCW

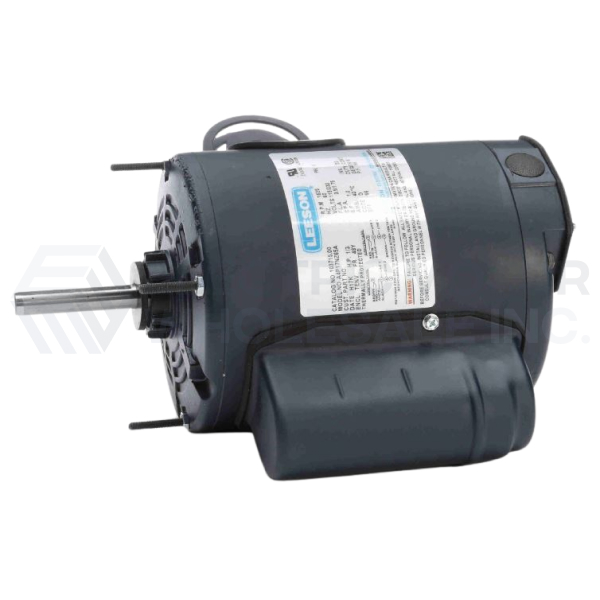

1/3HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191910.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191910.00
Stock # 191910
