1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191908.00

LEESON 191908.00 has been Superseded by 103712.00

Catalog Number:  191908.00
Model Number:  A4P17NZ64A
Description:  1/4HP,1625RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  15 lbs.
Volts 115 Volts 230 Volts
F.L. Amps 2.6 F.L. Amps 1.3 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP .25 Duty AIROVER TYPE PN
KW 0.19 Model # A4P17NZ64A
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code B
Insul Class B Protection AUTOMATIC Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE
CC Number   CE No Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 15 LB Enclosure TENV Lubrication POLYREX EM
Nameplate   Mounting SPECIAL Rotation SELECTIVE CCW

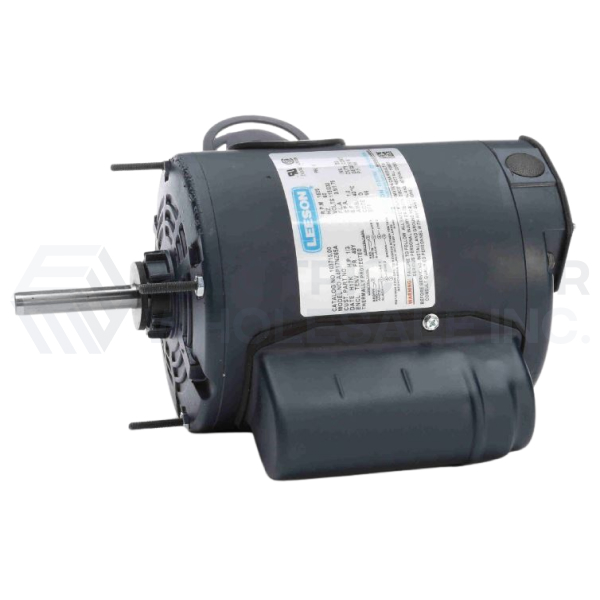

1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191908.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191908.00
Stock # 191908
