1/4HP LEESON 1075RPM 48Y TEAO 1PH MOTOR 191891.00

Catalog Number:  191891.00
Model Number:  A4P11NZ26A
Description:  1/4HP,1075RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  25 lbs.
Volts 115 Volts 230 Volts
F.L. Amps 2.4 F.L. Amps 1.2 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1075 Hertz 60
HP 1/4 Duty AIROVER TYPE PN
KW .187 Model # A4P11NZ26A
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code B
Insul Class B Protection AUTOMATIC Therm.Prot. MEG69RX
Eff 100% 71 Eff 75%   PF 95
UL Yes CSA Yes Bearing OPE
CC Number   CE No Bearing PE
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 25 LB Enclosure TENV Lubrication POLYREX EM
Nameplate   Mounting SPECIAL Rotation SELECTIVE CCW

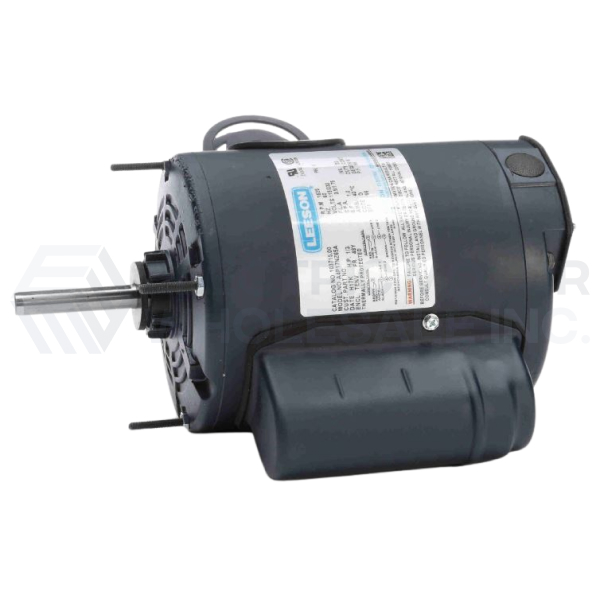

1/4HP LEESON 1075RPM 48Y TEAO 1PH MOTOR 191891.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191891.00
Stock # 191891
