1/2HP LEESON 1625RPM 48YZ TENV 1PH PEDESTAL FAN MOTOR 191875.00

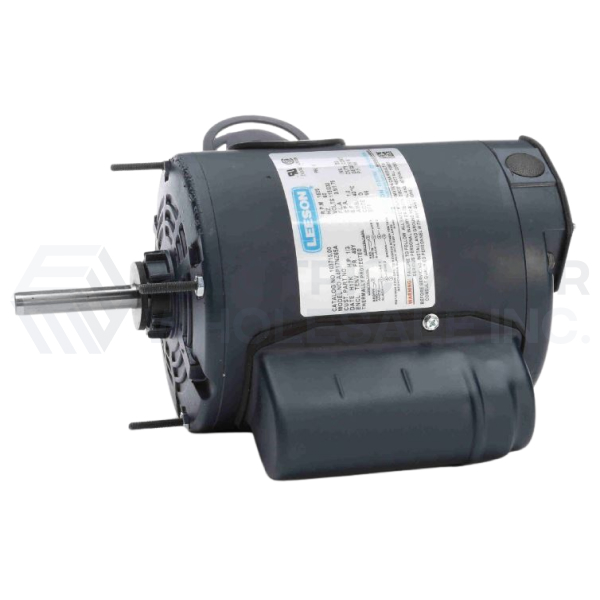

Picture is for reference only.

Part Number:

191875.00

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

A4P17NZ68

191875.00 LEESON 1/2HP Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and as a drop in replacement for most belted-fan motors. Heavy gauge steel yoke mount is welded to the motor frame. Extremely quiet running and consumes half the power compared to most standard fan motors.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

29 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.40.4040

UPC:

691720035771

Technical Details

Specifications

Application:	Pedestal Fan
Output HP:	1/2
Output KW:	.37
Output RPM:	1625
Frame NEMA:	48YZ
Mount NEMA:	Yoke Mount
Enclosure NEMA:	TENV
Enclosure IEC:	IP43
Voltage:	115/230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

LEESON Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and as a drop in replacement for most belted-fan motors. Heavy gauge steel yoke mount is welded to the motor frame. Extremely quiet running and consumes half the power compared to most standard fan motors.
