1/2HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191873.00

LEESON 191873.00 has been Superseded by 103719.00

Catalog Number:  191873.00
Model Number:  A4P17NZ67
Description:  1/2HP,1625RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  24 lbs.
Volts 115   Volts 230   Volts
FL Amps 4.6   FL Amps 2.3   FL Amps
SF Amps     SF Amps     SF Amps
RPM 1625   Hertz 60
HP 1/2   Duty AIROVER   Type PN
KW .37   SF 1.0   Phase 1
Frame R48Y   Design N   KVA Code B
Ambient 100   Protection AUTOMATIC   Therm.Prot. MEJ55RX
Insulation Class B   Eff(75%)     PF 93.7
Eff(100%) 74   CSA Y   Bearing OPE
UL Y   CE N   Bearing PE
CC Number     Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 17.2 LB   Enclosure TENV   Lubrication POLYREX EM
Nameplate     Mounting SPECIAL   Rotation SELECTIVE CCW
Shaft Diam. 1/2 IN   Cust Part No.     Packaging
      Winding QP5544   Carton Label
      Group 3   Iris
Paint NAN   Hazardous Location NONE   Test Card

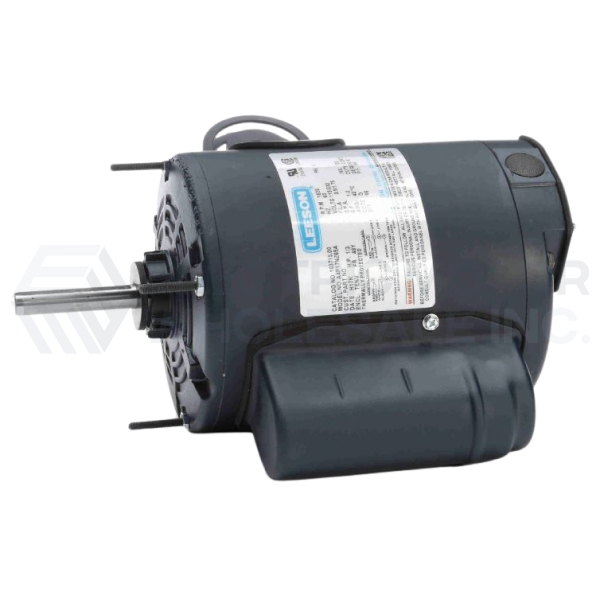

1/2HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191873.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191873.00
