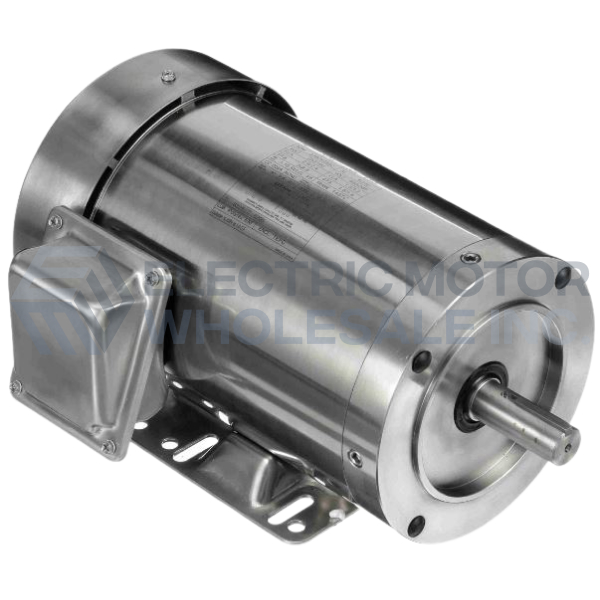

3HP LEESON 3450RPM 145TC TEFC 3PH WG SST MOTOR 191492.40
|Ship Weight:||55 lbs.|
LEESON WASHGUARD SST built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motors are able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.
Mechanical Protection Features: All exterior components - frame, base, endshields, fan guard, shaft, hardware, conduit box and cover - are made from 300 series stainless steel for maximum corrosion resistance. Nameplate data is permanently laser-etched into the motor frame-no Mylar nameplate that can wash off or riveted metal nameplate to trap dirt. No paint or any type of coating is used on the exterior of the motor.
Standards and Approvals: UL component recognized, file number E57948, guide number PRGY2, Energy efficiency ratings are verified by and independent testing laboratory. CSA Energy Efficiency Verification Program, report number EEV78720-1. Construction is CSA Certified for safety report number LR33543. Motor is CE marked for European acceptance.
|F.L. Amps||8-7.2||F.L. Amps||3.6||F.L. Amps||6/3|
|S. F Amps||9.2-8.2-4.1||S. F Amps||S. F Amps||6.6/3.3|
|Eff 100%||86.5||Eff 75%||PF||90|
|CC Number||CC005A||CE||Yes||Bearing PE||6205|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||55 LB||Enclosure||TEFC||Lubrication||POLYREX EM|
