2HP LEESON 3600RPM 145TC 1PH WG SST MOTOR 191482.00

Catalog Number:  191482.00
Model Number:  C145K34WK2A
Description:  2HP,3600RPM,145TC,TEFC,WASHGUARD SST,1PH,60HZ
Ship Weight:  41 lbs.

LEESON WASHGUARD SST built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motors are able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.

FEATURES:

  • 7/8" shaft output diameter
  • All exterior components - frame, base, endshields, fan guard, shaft, hardware, conduit box and cover - are made from 300 series stainless steel for maximum corrosion resistance.
  • Nameplate data is permanently laser-etched into the motor frame-no Mylar nameplate that can wash off or riveted metal nameplate to trap dirt.
  • No paint or any type of coating is used on the exterior of the motor.
  • Non-USA Manufactured, CN

Standards and Approvals: UL component recognized, file number E57948, guide number PRGY2, Energy efficiency ratings are verified by and independent testing laboratory. CSA Energy Efficiency Verification Program, report number EEV78720-1. Construction is CSA Certified for safety report number LR33543. Motor is CE marked for European acceptance

Volts 115 Volts 230 Volts
F.L. Amps 19 F.L. Amps 9.5 F.L. Amps
S. F Amps 20.8 S. F Amps 10.4 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE KF
KW 1.49 Model # C145K34WK2A
Frame 145TC Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 86.3
UL Y-(LEESON UL REC) CSA Yes Bearing OPE
CC Number EXEMPT CE Yes Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 41 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID C Rotation SELECTIVE CCW

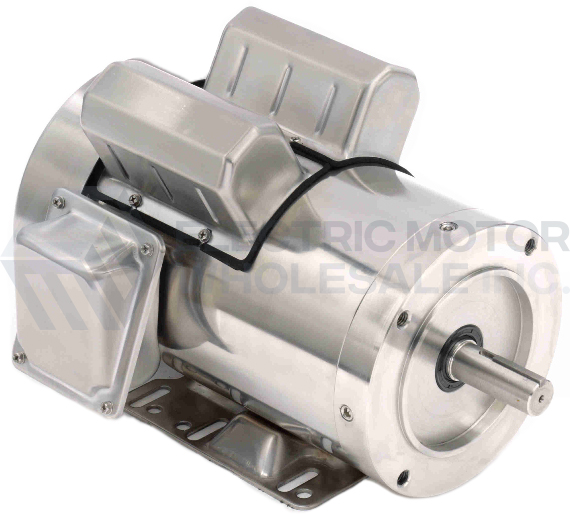

2HP LEESON 3600RPM 145TC 1PH WG SST MOTOR 191482.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191482.00
Stock # 191482
Price: $461.00
Compare At: $1,429.00
