1.5HP LEESON 3600RPM 56C 1PH WG SST MOTOR 191480.00

Catalog Number:  191480.00
Model Number:  C6K34WK2A
Description:  1.5HP,3600RPM,56C,TEFC,1PH,WASHGUARD SST
Ship Weight:  41 lbs.

LEESON WASHGUARD SST built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motors are able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.


  • 5/8" shaft output diameter
  • All exterior components - frame, base, endshields, fan guard, shaft, hardware, conduit box and cover - are made from 300 series stainless steel for maximum corrosion resistance.
  • Nameplate data is permanently laser-etched into the motor frame-no Mylar nameplate that can wash off or riveted metal nameplate to trap dirt.
  • No paint or any type of coating is used on the exterior of the motor.
  • Non-USA Manufactured, CN

Standards and Approvals: UL component recognized, file number E57948, guide number PRGY2, Energy efficiency ratings are verified by and independent testing laboratory. CSA Energy Efficiency Verification Program, report number EEV78720-1. Construction is CSA Certified for safety report number LR33543. Motor is CE marked for European acceptance

Volts 115 Volts 230 Volts
F.L. Amps 16.4 F.L. Amps 8.5-8.2 F.L. Amps
S. F Amps 18.2 S. F Amps 9.7-9.1 S. F Amps
RPM 3600 Hertz 60
KW 1.12 Model # C6K34WK2A
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 75.5 Eff 75%   PF 78.4
CC Number EXEMPT CE Yes Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 40.75 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID C Rotation SELECTIVE CCW
1.5HP LEESON 3600RPM 56C 1PH WG SST MOTOR 191480.00

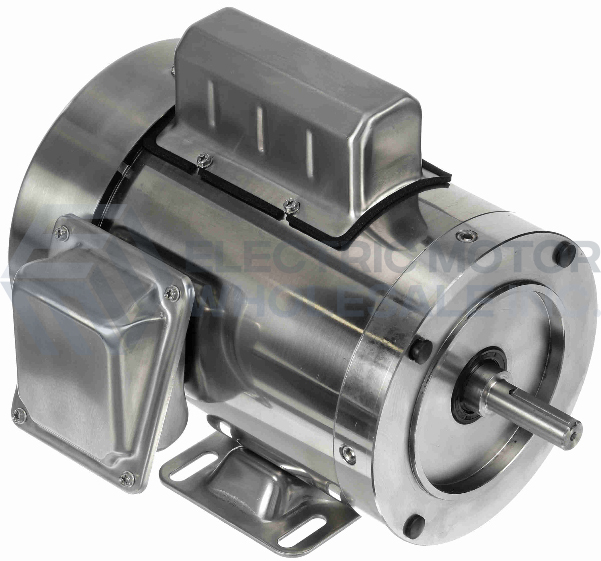

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191480.00
Stock # 191480
Price: $400.00
Compare At: $1,046.00
