3/4HP LEESON 1800RPM 56C 1PH WG SST MOTOR 191477.00

Catalog Number:  191477.00
Model Number:  C6C17WK15A
Description:  3/4HP,1800RPM,56C,TEFC,1PH,60HZ,WASHGUARD SST
Ship Weight:  39 lbs.

LEESON WASHGUARD SST built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motors are able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.


  • 5/8" shaft output diameter
  • All exterior components - frame, base, endshields, fan guard, shaft, hardware, conduit box and cover - are made from 300 series stainless steel for maximum corrosion resistance.
  • Nameplate data is permanently laser-etched into the motor frame-no Mylar nameplate that can wash off or riveted metal nameplate to trap dirt.
  • No paint or any type of coating is used on the exterior of the motor.
  • Non-USA Manufactured, CN

Standards and Approvals: UL component recognized, file number E57948, guide number PRGY2, Energy efficiency ratings are verified by and independent testing laboratory. CSA Energy Efficiency Verification Program, report number EEV78720-1. Construction is CSA Certified for safety report number LR33543. Motor is CE marked for European acceptance

Volts 115 Volts 230 Volts
F.L. Amps 9.8 F.L. Amps 4.9 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW .56 Model # C6C17WK15A
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 72 Eff 75%   PF .68
CC Number EXEMPT CE Yes Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 39 LB Enclosure TEFC Lubrication STANDARD
Nameplate NONE Mounting RIGID C Rotation SELECTIVE CCW

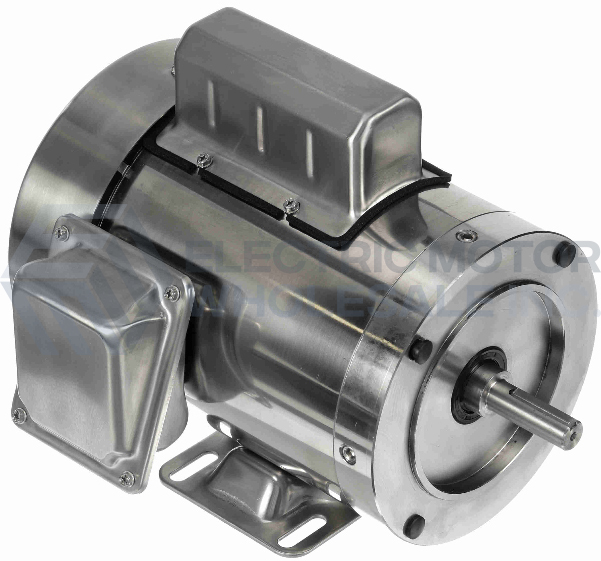

3/4HP LEESON 1800RPM 56C 1PH WG SST MOTOR 191477.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191477.00
Stock # 191477
Price: $378.00
Compare At: $957.00
