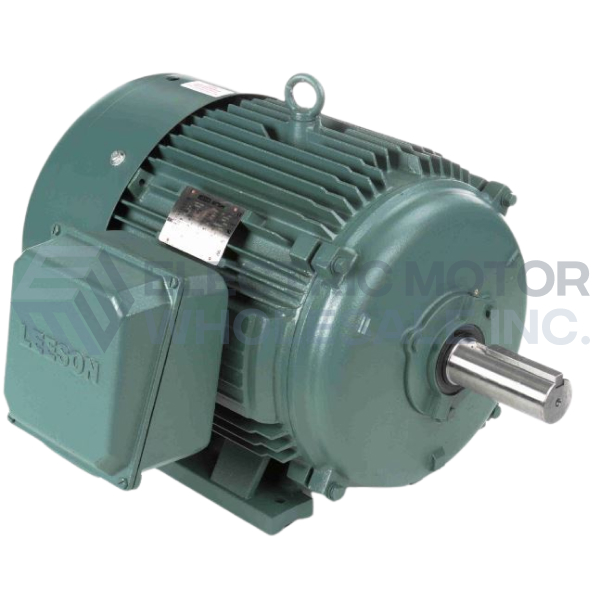

75HP LEESON 1190RPM 405T TEFC 3PH WATTSAVER MOTOR 171795.60

75HP LEESON 1190RPM 405T TEFC 3PH WATTSAVER MOTOR 171795.60


Part Number:

171795.60

Model/Spec Number:

C405T11FB12

Manufacturer:

Leeson Obsolete
171795.60 LEESON 75HP WATTSAVER Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

1,115 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.0000

UPC:

691720045572

Technical Details

Brand:

Leeson

Application:

Severe Duty

Output HP:

75

Output KW:

50-69

Output RPM:

1025-1295 (6P)

Frame Size NEMA:

404-5T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460
