40HP LEESON 1780RPM 324T TEFC 3PH WATTSAVER MOTOR 171785.60

40HP LEESON 1780RPM 324T TEFC 3PH WATTSAVER MOTOR 171785.60

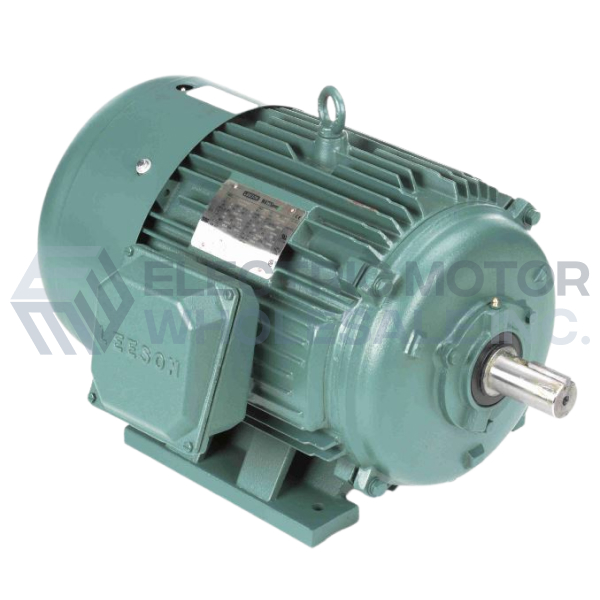

Picture is for reference only.

Part Number:

171785.60

Model/Spec Number:

C324T17FB12

Manufacturer:

Leeson Obsolete
171785.60 LEESON 40HP WATTSAVER Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

530 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.0000

UPC:

691720045473

Technical Details

Brand:

Leeson

Application:

Severe Duty

Output HP:

40

Output KW:

30-35

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

324-6T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460
