10HP LEESON 1185RPM 256T TEFC 3PH WATTSAVER MOTOR 171637.60

Catalog Number:  171637.60
Model Number:  C256T11FB1
Description:  10HP,1185RPM,256T,TEFC,3PH,SEVERE DUTY
Ship Weight:  312 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Severe Duty WATTSAVER Plus Electric Motor is designed specifically to meet severe duty environments that youmay find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • 1 5/8" shaft output diameter
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, temperature Code T2B
  • 3-year warranty
  • Non-USA Manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 31-29 F.L. Amps 14.5 F.L. Amps 25.2/12.6
S. F Amps 32.6 S. F Amps 16.3 S. F Amps 28/14
RPM 1200 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.50 Model # C256T11FB1AA
Frame 256T Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 71.4
UL V-INS, CONST UL REC CSA No Bearing OPE NONE
CC Number NONE CE Yes Bearing PE NONE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 312 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92964 Mounting RIGID Rotation REV

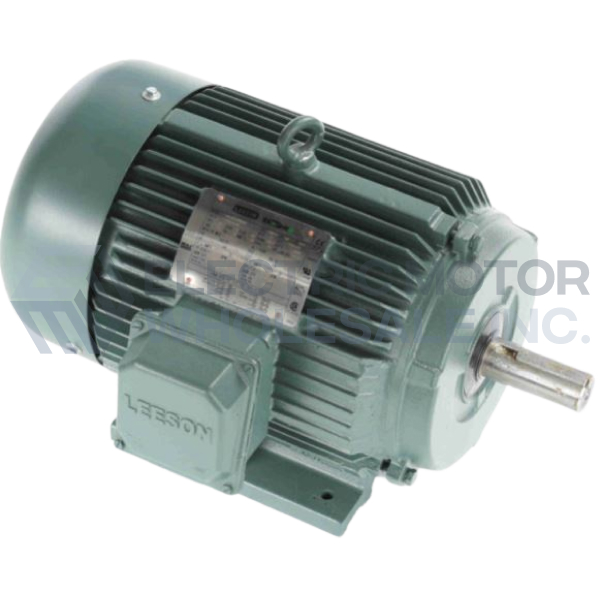

10HP LEESON 1185RPM 256T TEFC 3PH WATTSAVER MOTOR 171637.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171637.60
Stock # 171637
Price: $1,645.00
Compare At: $4,153.00
Quantity:
