15HP LEESON 1765RPM 254T TEFC 3PH WATTSAVER MOTOR 171632.60

Catalog Number:  171632.60
Model Number:  C254T17W1
Description:  15HP,1765RPM,254T,TEFC,3PH,SEVERE DUTY
Ship Weight:  294 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Severe Duty WATTSAVER Plus Electric Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • 1 5/8" shaft output diameter
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, temperature Code T2B
  • 3-year warranty
  • Non-USA Manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 40-36 F.L. Amps 18 F.L. Amps 30.5/15.25
S. F Amps 42 S. F Amps 21 S. F Amps
RPM 1800 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TF
KW 11.2 Model # C254T17W1AA
Frame 254T Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 84
UL V-INS, CONST UL REC CSA No Bearing OPE 6308
CC Number NONE CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 294 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92964 Mounting RIGID Rotation REV

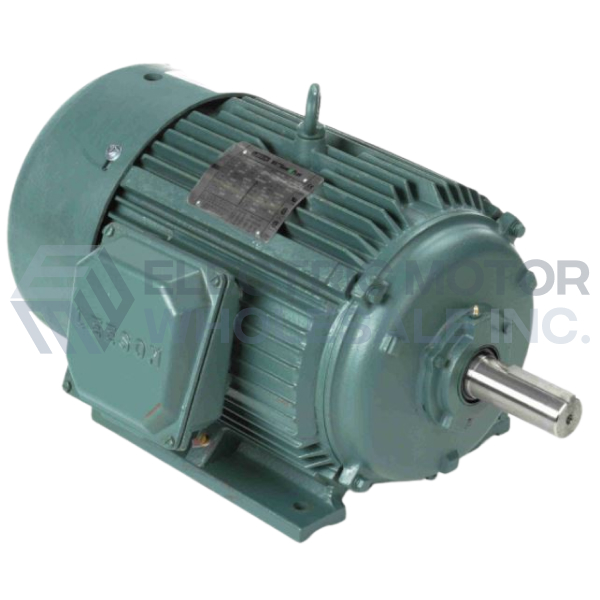

15HP LEESON 1765RPM 254T TEFC 3PH WATTSAVER MOTOR 171632.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171632.60
Stock # 171632.60
