10HP LEESON 1760RPM 215T TEFC 3PH WATTSAVER MOTOR 171631.60

Catalog Number:  171631.60
Model Number:  C215T17FB1
Description:  10HP,1760RPM,215T,TEFC,3PH,SEVERE DUTY
Ship Weight:  187 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Severe Duty WATTSAVER Plus Electric Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • 1 3/8" shaft output diameter
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, temperature Code T2B
  • 3-year warranty
  • Non-USA Manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 27-25 F.L. Amps 12.5 F.L. Amps 23/11.5
S. F Amps 28 S. F Amps 14 S. F Amps 25.8/12.9
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.50 Model # C215T17FB1AA
Frame 215T Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 81.6
UL V-INS, CONST UL REC CSA No Bearing OPE NONE
CC Number NONE CE Yes Bearing PE NONE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 187 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

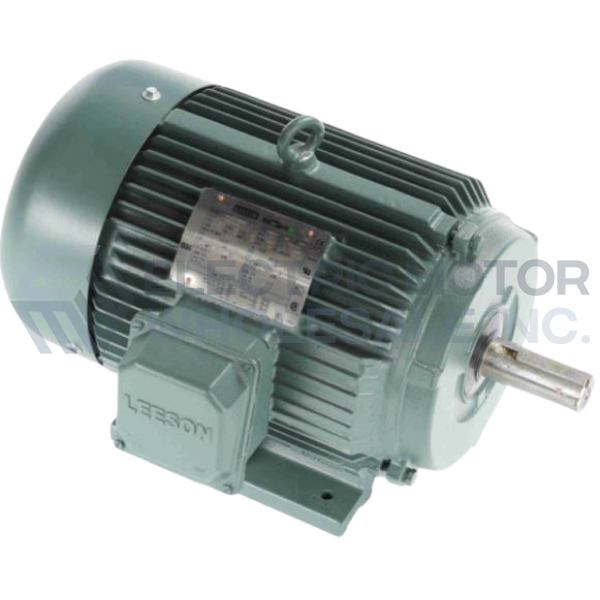

10HP LEESON 1760RPM 215T TEFC 3PH WATTSAVER MOTOR 171631.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171631.60
Stock # 171631
Price: $928.00
Compare At: $2,341.00
