5HP LEESON 1800RPM 184T TEFC 3PH WATTSAVER MOTOR 171630.60

Catalog Number:  171630.60 - FREE Ground Shipping in USA
Model Number:  C184T17FB1
Description:  5HP,1800RPM,184T,TEFC,3PH,SEVERE DUTY
Ship Weight:  120 lbs.

LEESON Three Phase WATTSAVER e Plus Severe Duty Motor is used in severe duty environments that you may find in foundries, pulp, paper mills, waste management facilities, above ground mines, refineries or other applications that demand corrosion protection for long motor life and dependability.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • NEMA Premium efficiency rating with a three year warranty
  • 1 1/8" Keyed output shaft
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP55 enclosure protection
  • Division 2 CSA certification for hazardous locations:
  • Class 1 Groups A, B, C,D, Temperature Code T2B
  • Non-USA Manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 13.8-12.8 F.L. Amps 6.4 F.L. Amps 15.4/7.7
S. F Amps 14.6 S. F Amps 7.3 S. F Amps 17.6/8.8
RPM 1800 Hertz 60/50
HP 5 Duty CONTINUOUS TYPE TF
KW 3.70 Model # C184T17FB1AAA
Frame 184T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 81.1
UL V-INS, CONST UL REC CSA No Bearing OPE 6205
CC Number NONE CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 120 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92970 Mounting RIGID Rotation REV

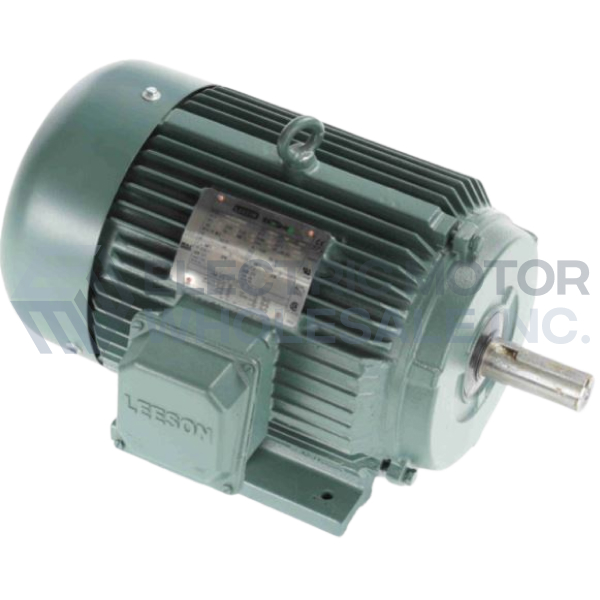

5HP LEESON 1800RPM 184T TEFC 3PH WATTSAVER MOTOR 171630.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171630.60
Stock # 171630.60
Price: $701.00
Compare At: $1,465.00
