3HP LEESON 1770RPM 182T TEFC 3PH WATTSAVER MOTOR 171623.60

Catalog Number:  171623.60
Model Number:  C184T17FB1
Description:  3HP,1770RPM,182T,TEFC,3PH,SEVERE DUTY
Ship Weight:  112 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Severe Duty WATTSAVER Plus Electric Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • 1 1/8" shaft output diameter
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C,D, temperature Code T2B
  • 3-year warranty, on Wattsaver Motors
  • Non-USA manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 8.3-7.8 F.L. Amps 3.9 F.L. Amps 6.6/3.3
S. F Amps 8.8 S. F Amps 4.4 S. F Amps
RPM 1800 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24 Model # C184T17FB1
Frame 182T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 79.5
UL V-INS, CONST UL REC CSA Yes Bearing OPE NONE
CC Number NONE CE Yes Bearing PE NONE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 112 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92970 Mounting RIGID Rotation REV

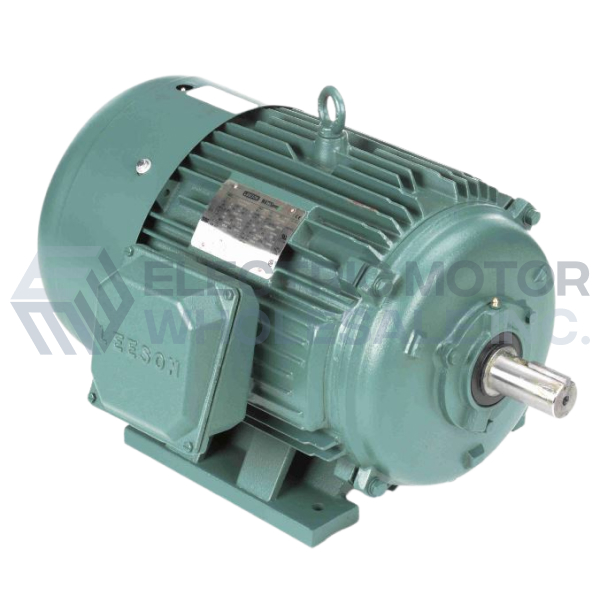

3HP LEESON 1770RPM 182T TEFC 3PH WATTSAVER MOTOR 171623.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171623.60
Stock # 171623
Price: $561.00
Compare At: $1,415.00
