7.5HP LEESON 1770RPM 213T TEFC 3PH WATTSAVER MOTOR 171622.60

Catalog Number:  171622.60
Model Number:  C213T34FW1
Description:  7.5HP,1770RPM,213T,TEFC,3PH,SEVERE DUTY
Ship Weight:  165 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Severe Duty WATTSAVER Plus Electric Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

FEATURES:

  • Full cast iron construction
  • Inverter rated insulation system
  • 1 3/8" shaft output diameter
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, temperature Code T2B
  • 3-year warranty
  • Non-USA Manufactured, CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 20-18.6 F.L. Amps 9.3 F.L. Amps 16/8
S. F Amps 21 S. F Amps 10.5 S. F Amps
RPM 1800 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C213T17FW1AAA
Frame 213T Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 82.3
UL V-INS, CONST UL REC CSA No Bearing OPE NONE
CC Number NONE CE Yes Bearing PE NONE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 165 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92970 Mounting RIGID Rotation REV

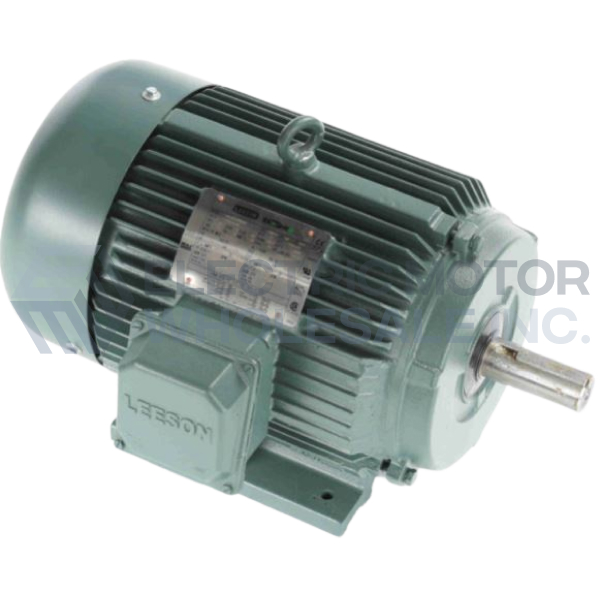

7.5HP LEESON 1770RPM 213T TEFC 3PH WATTSAVER MOTOR 171622.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 171622.60
Stock # 171622.60
Price: $908.00
Compare At: $1,963.00
