10HP LEESON 1765RPM 215T DP 3PH WATTSAVER MOTOR 170144.60

Catalog Number:  170144.60 - FREE Ground Shipping in USA
Model Number:  C215T17DB49 D
Description:  10HP,1765RPM,215T,DP,3PH,60/50HZ,WATTSAVER
Ship Weight:  203 lbs.

LEESON WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • 1 3/8" Keyed output shaft
  • Durable cast Iron frame
  • Inverter-rated
  • Rated for 50 Hz operation
  • Class F insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified
  • Premium efficient motor with 3 year warranty
  • Non-USA Manufactured, CN



Volts 208-230   Volts 460   Volts 190/380
FL Amps 28.5-25.6   FL Amps 12.8   FL Amps 22.8/11.4
SF Amps 29.6   SF Amps 14.8   SF Amps 25.6/12.8
RPM 1800   Hertz 60/50
HP 10   Duty CONTINUOUS   Type TD
KW 7.5   SF 1.15   Phase 3
Frame 215T   Design B   KVA Code J
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 79.3
Eff(100%) 91.7   CSA Y   Bearing OPE 6208
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6308
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 203 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 081024   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging 307997.99
      Winding T10704024   Carton Label INDIVIDUAL
      Group 3   Iris
Paint BLUE (ENAMEL)   Hazardous Location NONE   Test Card

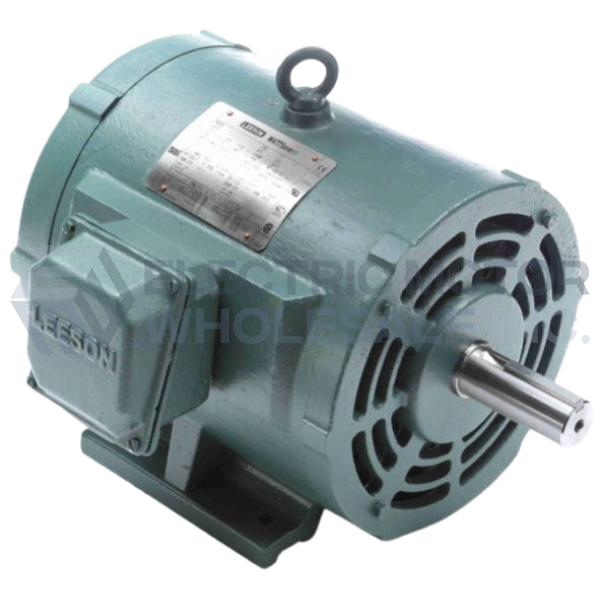

10HP LEESON 1765RPM 215T DP 3PH WATTSAVER MOTOR 170144.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 170144.60
Stock # 170144
Price: $699.00
Compare At: $1,757.00
