15HP LEESON 1185RPM 284T DP 3PH WATTSAVER MOTOR 170067.60

Catalog Number:  170067.60
Model Number:  C284T11DB7A
Description:  15HP,1185RPM,284T,DP,3PH,60/50HZ,WATTSAVER
Ship Weight:  445 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications. LEESON WATTSAVER motors carry a three-year warranty in general purpose and inverter fed applications. LEESON's unique IRIS voltage-spike-resistant insulation system is standard at no extra cost. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • 1 7/8" shaft output diameter
  • Steel frame
  • Inverter-rated
  • Nameplated for 50 Hz operation
  • Class F insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified
  • NEMA Premium efficient motor with 3 year warranty
  • Non-USA Manufactured, CN



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 42.2-39.4 F.L. Amps 19.7 F.L. Amps 33.4/16.7
S. F Amps 44.6 S. F Amps 22.3 S. F Amps 37.2/18.6
RPM 1200 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TD
KW 11.2 Model # C284T11DB7A
Frame 284T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 76.7
UL Yes CSA Yes Bearing OPE 6211
CC Number CC005A CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 445 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081023 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 1.875 IN Ext. Diag. 004172.01
Cust Part No   Outline 16955260 Ext. Diag2

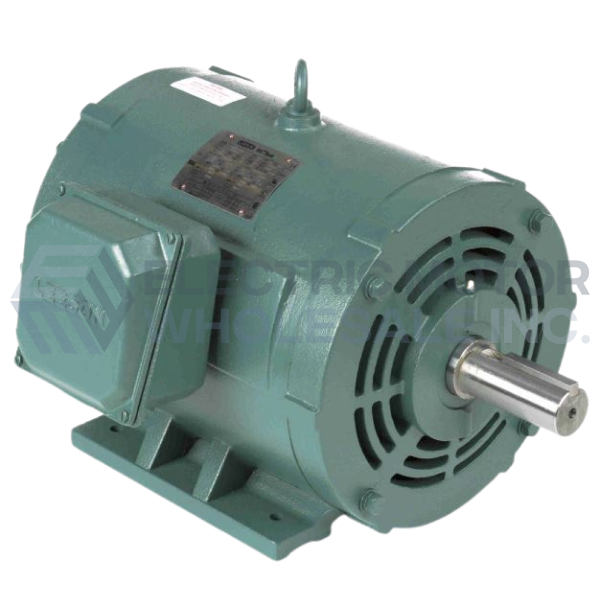

15HP LEESON 1185RPM 284T DP 3PH WATTSAVER MOTOR 170067.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 170067.60
Stock # 170067
Price: $1,285.00
Compare At: $3,538.00
